C Series COB LED Down Light

Short Description

name: C Series COB LED Down Light
Model: HC-DL-CC

Buy COB LED Downlight from China LED Light Manufacturer Haichang Optotech, 5W 7W 10W, over 50,000H life, 2-year warranty, >72 CRI, various beam angle.

Request a Quote

Keyword:best LED light bulbs,

Previous: D Series COB LED Down LightNext: B Series COB LED Down Light

Description:

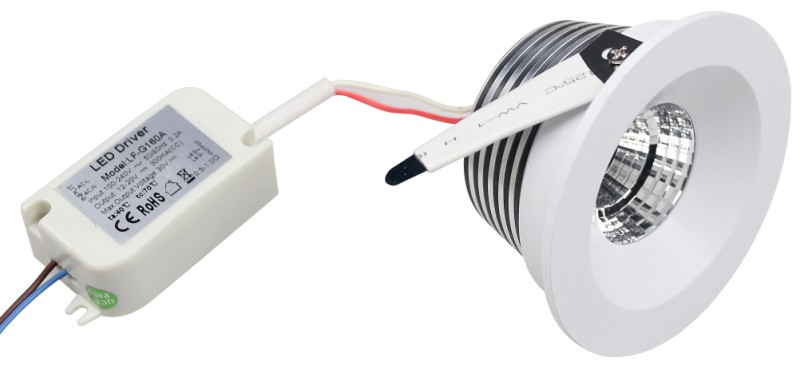

Concise series COB LED down light, 5W, 7W, 10W Recessed LED Down Light

Feature:

High efficiency: >90LM/W
Epistar COB LED, very even light output
Various beam angle available
with anti-glare cover
Die casting aluminum alloy housing, good heat sinking design
External LED driver included, work under AC100-240V directly
Color Rendering Index (CRI): >72
Instant start, no fluorescent flickering, no Hg or lead contamination
Long life span: more than 50,000 hours
CE & ROHS compliant, 2-year warranty

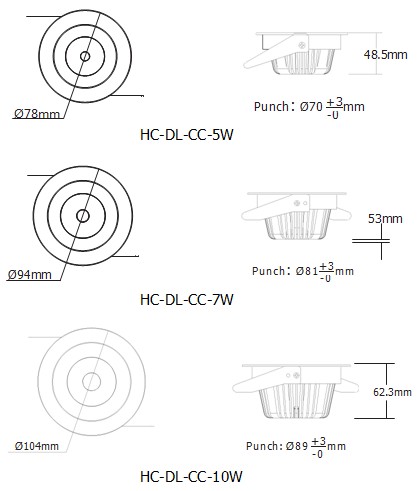

Dimension:

Technical details:

5W 2.5 inch:

Light output: 340±10Lm
Size: ф78*48.5mm
Hole Size: Φ70-73mm
Beam Angle: 23°

7W 3 inch:

Light output: 650±20Lm
Size: ф94*53mm
Hole Size: Φ81-84mm
Beam Angle: 17°/38°/58°

10W 3.5 inch:

Light output: 960±30Lm
Size: ф104*62.3mm
Hole Size: Φ89-92mm
Beam Angle: 22.5°/36.5°/56°

Light source: Epistar COB LED
Input voltage: AC100-240V
Power Factor (PF): >0.9
Emitting Color: Warm White(2500-3200K),Nature White(4000-4500K),Cool White(6000-7500K)
Color Rendering Index (CRI): >72
Housing material: Die-cast aluminum alloy
Finishing color: White
Operation Temperature: -20 to +50 degrees Celsius
