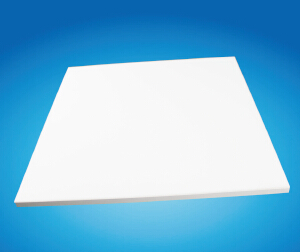

Frameless LED Panel Lights

Short Description

name: Frameless LED Panel Lights
Model: PNL-FL-2835-600x600

Haichang Optotech supply Frameless LED panel light 13W 24W 45W, with sizes 300x300mm,600x300mm,600x600mm available.Concise and delicate, even light output

Description:

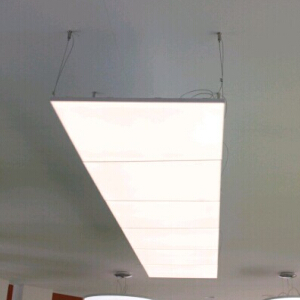

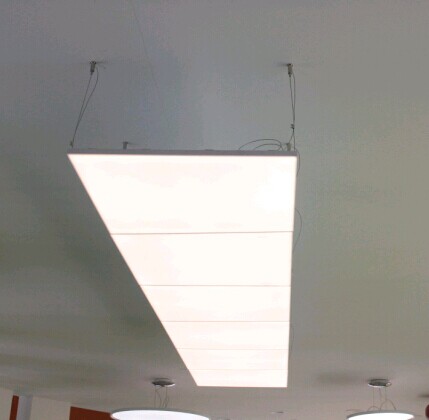

Project photo:



2835 SMD LED as light source
Aluminum alloy shell
Concise and delicate, even light output
Much lower surface temperature than fluorescent grille light
Even and Soft light beam, without the feeling of dazzling, Anti-glare
Over 50,000 hours lifetime
Environmental friendly: it saves over 80% power consumption than incandescent light or 50% than fluorescent light
Solid-state, high shock or vibration resistant
Work without ballast, quick instant response
No flickering. No UV or IR radiation
Compliant with CE, Rohs and UL certificates
3-year Warranty

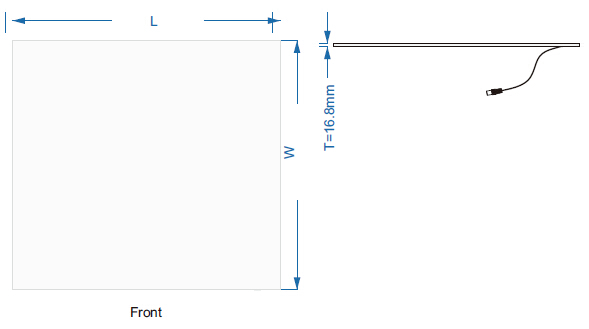

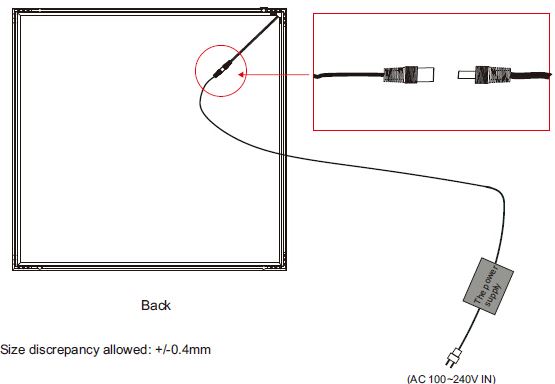

Panel size:



Technical Descriptions:

Panel Size: 295×295xT16.8mm, 595*295*T16.8mm, 595*595*T16.8mm
LED QTY:  70pcs, 126pcs, 224pcs
LED type: SMD LED
Emitting Colors available: White(4000-7000K), Warm white(2500-4000K)
Operating voltage: DC24V
Power consumption: 13W,24W,45W
Light-emitting angle: 120 degree
Life: 50000 hours


Model Color Size
(mm)
LED QTY Voltage CRI Power Lumens
PNL-FL-2835-300x300-W White 295×295 70 DC24V >80 13 watt 962
PNL-FL-2835-300x300-WW Warm White 295×295 70 DC24V >80 13 watt 821

Model Color Size
(mm)
LED QTY Voltage CRI Power Lumens
PNL-FL-2835-600x300-W White 595×295 126 DC24V >80 24 watt 1738
PNL-FL-2835-600x300-WW Warm White 595×295 126 DC24V >80 24 watt 1580

Model Color Size
(mm)
LED QTY Voltage CRI Power Lumens
PNL-FL-2835-600x600-W White 595×595 224 DC24V >80 45 watt 3600
PNL-FL-2835-600x600-WW Warm White 595×595 224 DC24V >80 45 watt 3210

Light distribution graph OF frameless LED panel light

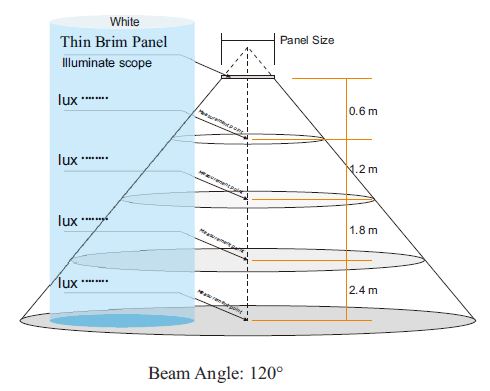

Illumination cone curve of frameless LED panel light



The lux parameter of frameless LED panel light:

Height 300x300mm
13W
600x300mm
24W
600x600mm
45W
0.6m 800 lux 1300 lux 2550 lux
1.2m 252 lux 430 lux 880 lux
1.8m 123 lux 210 lux 480 lux
2.4m 76 lux 130 lux 310 lux

Installation types:
1. Embedded or recessed installation
2. Suspension installation: hanging by steel rope

-Please check detail guide in the PDF file.

Applications:

Direct replacement of traditional T8 fluorescent light or Phillip Grille light; can be hanged from the roof or mounted into roof or wall or surfaces of any other objects.
Widely used in commercial or home indoor lighting such as supermarket, conference room, exhibition hall, hotel, office, etc..

Packaging of 300x300mm Frameless LED panel light:

Outer carton: 405*350*380mm
Quantity: 5 units/carton
Net weight: 1KG/unit

Packaging of 600×300 Frameless LED panel light:

Outer carton: 690*350*370mm
Quantity: 5 units/carton
Net weight: 2.6KG/unit

Packaging of 600×600 Frameless LED panel light:

Outer carton: 575*670*350mm
Quantity: 5 units/carton
Net weight: 5KG/unit
