17W Ultra-thin LED Ceiling Light

Short Description

name: 17W Ultra-thin LED Ceiling Light
Model: HC-L18024-W

Buy Ultra-thin LED Ceiling Light from China LED Light Manufacturer Haichang Optotech, 17W power, 880-1100LM, it is very bright with even light output.

Description:

The 17W Ultra-thin LED Ceiling Light uses high quality Epistar 3528 SMD LED as light source. It's very bright with even light output. It occupy very limited space on the ceiling, so it makes the installation much easier and flexible. It apply constant current driving system with wide voltage range: AC100-240V. The size of opening hole can be made according to customers' request.

Product features:

Energy saving up to 50%, very even light output
Light source:  High quality 3528 SMD LED
Each group of LEDs work independently
Instant start, no flickering, no humming
3 year warranty

Technical datas:

Power:  17W
Working voltage: DC24V
Light output (Lumens):  880-1100LM
Beam Angel: 120 degree
Color temperature: White / Warm white / Nature white (2700K-7000K)
Color Rendering Index (CRI): >80
Size: 180 x180 x 26mm(Thickness)
Hole size:
L: 155~165mm   W:155~165mm
Housing material: Die-cast aluminum alloy
Finishing color: White, Silver, etc..
Operation Temperature: -20
° to +50°

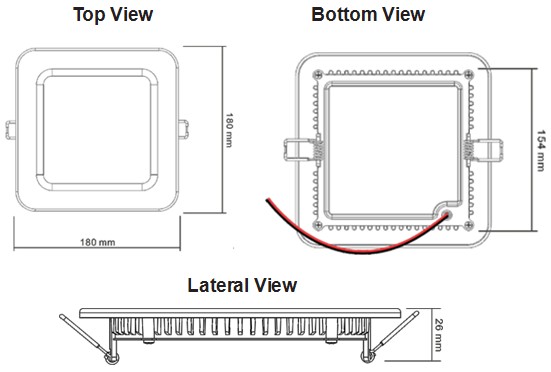

Drawing:



Light Distribution Graph:



Applications:

Our
Ultra-thin LED Ceiling Light can directly replace traditional ceiling lights or halogen down lights.
