11W Ultra-thin LED Ceiling Light
Short Description
name: 11W Ultra-thin LED Ceiling Light
Model: HC-L15024-W
Model: HC-L15024-W
Buy Ultra-thin LED Ceiling Light from China LED Light Manufacturer Haichang Optotech, 11W power, 630-660LM light output, wide voltage range.
Previous: 17W Ultra-thin LED Ceiling LightNext: 6W Ultra-thin LED Ceiling Light
Description:
The 11W Ultra-thin LED Ceiling Panel Light uses high quality Epistar 3528 SMD LED as light source. It's very bright with even light output. It occupy very limited space on the ceiling, so it makes the installation much easier and flexible. It apply constant current driving system with wide voltage range: AC100-240V. The size of opening hole can be made according to customers' request.
Product features:
Energy saving up to 50%, very even light output
Light source: High quality 3528 SMD LED
Each group of LEDs work independently
Instant start, no flickering, no humming
3 year warranty
Technical datas:
Power: 11W
Working voltage: DC24V
Light output (Lumens): 630-660LM
Beam Angel: 120 degree
Color temperature: White / Warm white / Nature white (2700K-7000K)
Color Rendering Index (CRI): >80
Size: 150 x150 x 26mm(Thickness)
Hole size:
L: 125~135mm W:125~135mm
Housing material: Die-cast aluminum alloy
Finishing color: White, Silver, etc..
Operation Temperature: -20° to +50°

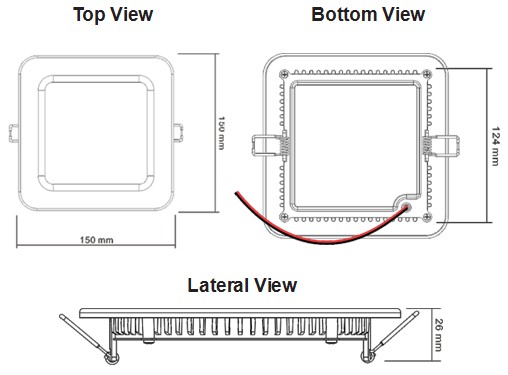

Drawing:
Light Distribution Graph:
Applications:
Our Ultra-thin LED Ceiling Light can directly replace traditional ceiling lights or halogen down lights.
Product features:
Energy saving up to 50%, very even light output
Light source: High quality 3528 SMD LED
Each group of LEDs work independently
Instant start, no flickering, no humming
3 year warranty
Technical datas:
Power: 11W
Working voltage: DC24V
Light output (Lumens): 630-660LM
Beam Angel: 120 degree
Color temperature: White / Warm white / Nature white (2700K-7000K)
Color Rendering Index (CRI): >80
Size: 150 x150 x 26mm(Thickness)
Hole size:
L: 125~135mm W:125~135mm
Housing material: Die-cast aluminum alloy
Finishing color: White, Silver, etc..
Operation Temperature: -20° to +50°
Drawing:
Light Distribution Graph:
Applications:
Our Ultra-thin LED Ceiling Light can directly replace traditional ceiling lights or halogen down lights.
