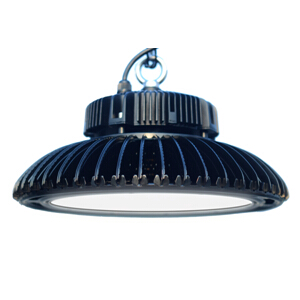

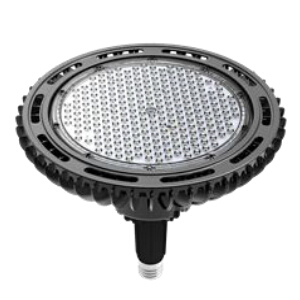

200W Fin LED High Bay IP65 Airflow Design for Warehouses Lighting

Short Description

name: 200W Fin LED High Bay IP65 Airflow Design for Warehouses Lighting
Model: HB-FIN-200W

Buy Fin LED High Bay Light from China LED Light Manufacturer Haichang Optotech, 200W, airflow design, IP65, excellent thermo conductivity.

Description:

The new generation LED high bay with Airflow design is housed by Fin shape aluminum. The heat sinking Airflow structure makes sure the heat can be taken out quickly to keep the fixture cool during operation. The special housing structure also enables rain water dropping out of the light fixture smoothly without getting inside. This series of LED high bay is designed for replacement of traditional halide industrial lamps. It has IP65 protection for both indoor and outdoor applications, typically used in factories, gyms, warehouses, parking garages, squares, airports, subways, shopping malls, overpasses, billboards and other lighting areas.

Product Features:

Airflow design, beautiful appearance
Fin shape aluminum housing, excellent thermo conductivity, fast cooling
Only 4.42Kg for 150W, 4.78Kg for 200W, Extremely light weighted, much less cost on transportation.
Meanwell Constant current LED driver, high PF, high efficiency, great protection.
NICHIA LED, high CRI>80, ultrathin packaging, low attenuation.
Instant start, No fluorescent flicking, Mercury free, Lead free
Energy saving, environmental friendly
Working Temperature: -30~50°C
Operating voltage: AC90V-305V, 3.0A; 50/60Hz
IP65 protection
50,000 hours lifespan
3 year warranty
CE,RoHS compliant

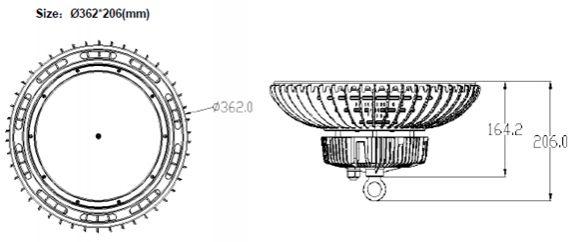

Dimension:

Technical datas:

Model Power LED Driver Color Temp. Lumens IP
grade
CRI Beam
angle
HB-FIN-150W 150W Nichia Meanwell WW:2700K~3200K
PW: 4000K~4500K
CW: 5800K~6500K
18000-18750lm IP65 Ra80 60°/110°
HB-FIN-200W 200W Nichia Meanwell WW:2700K~3200K
PW: 4000K~4500K
CW: 5800K~6500K
24000-25000lm IP65 Ra80 60°/110°

Luminaire Test Report

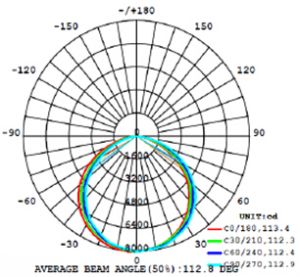

Light distribution curve :

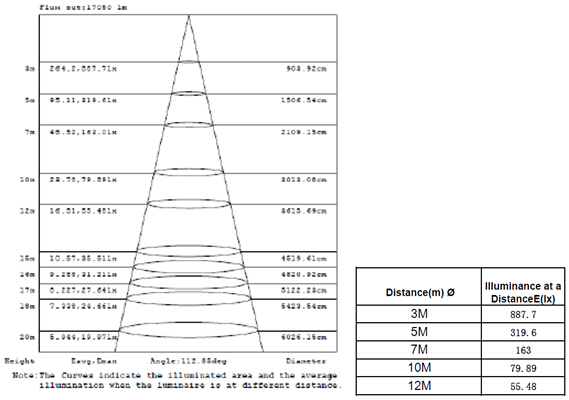

AAI Figure:

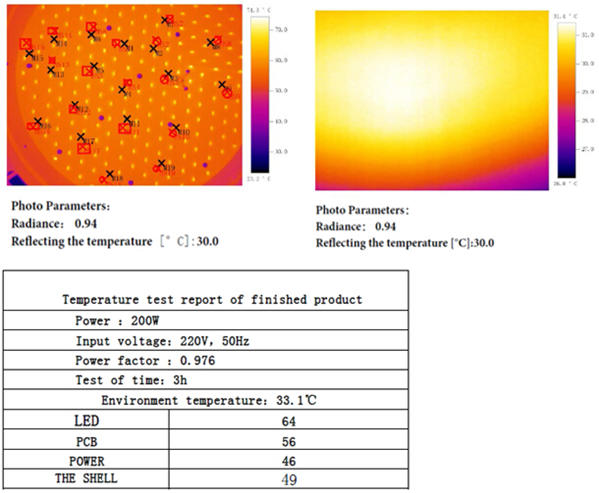

Temperature Test Report:

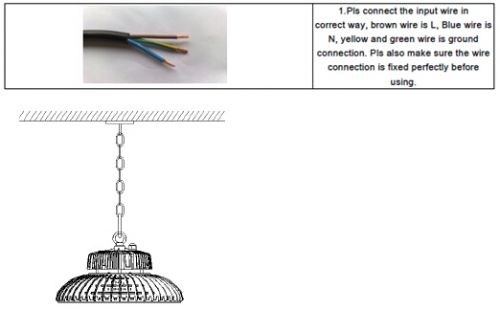

Installation:



Packaging:

1pc/Carton
Carton size: 470*470*205mm
Net weight: 4.42Kg(150W), 4.78Kg(200W)
Gross weight: 6.24Kg(150W), 6.6Kg(200W)

Attention:

1.Only professional is allowed to do the installation. Non-professional personnel shall not remove or install.
2.Please read the instruction manual before installation and keep it for future reference.
3.To avoid damage, falling, electric shock or fire, do not modify the lamp or replace accessories without confirming with the supplier first.
4.Before maintenance or installation or replacing the lamps, make sure the power is shut down in advance.
5.Make sure proper and accurate connection before power on.
6. Should follow local fire fighting regulations during operation.
