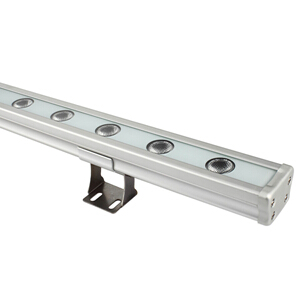

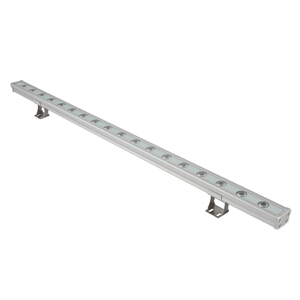

LED Wall Washers 18W

Short Description

name: LED Wall Washers 18W
Model: WW-1401-18-24-W/RGB

Haichang 18w led wall washer uses Epistar or Bridgelux LED and Aluminum alloy housing with anodized surface. IP67, very low surface temperature, Tempered glass, impact resistant.

Description:

Features:

Epistar or Bridgelux 1Watt high power LED as light source, energy efficient
Aluminum alloy housing with anodized surface, very low surface temperature
Tempered glass, impact resistant
IP67,corrosion resistant, high quality silicone rubber seal, perfect waterproof

Imported PMMA lens, light transmission up to 93%
Stainless steel mounting bracket, multi-function, light emitting angle adjustable

Color: Seven static single color, seven color changing, jumping, fading, chasing...
RGB Control mode: internal control or External control by DMX controller

Fast and simple installation. Connecting by standard signal cord and power cord
Ambient Temperature: -25°to 60°
Life Span: > 50,000 hours
Warranty: 2 years



Technical details:

Power consumption: 18 Watt
Input Voltage: AC100V~AC240V
Working voltage: DC24V
Beam Angle: 15-60 degree
Projection Distance: 10-50 meters
IP degree: IP 67 Waterproof & dustproof)
Electrical protection: Class I
Temperature range for outdoor applications: -30℃ to 60℃
Size: 500*58*80mm
Various sizes and wattages available upon request

Light distribution curve:

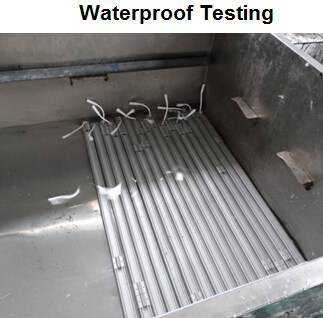

Waterproof testing:



Applications:

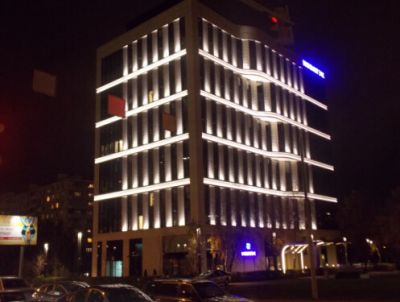

Our LED wall washers lights are widely used in stage lighting, accent lighting, architectural lighting, landscape lighting, flood lighting, wall wash lighting, in areas including commercial buildings, bars, entertainment plazas, hotels, resorts, parks, museums, art galleries, etc.
