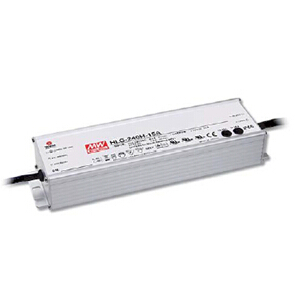

UL Listed Waterproof LED Power Supply

Short Description

name: UL Listed Waterproof LED Power Supply
Model:

Buy UL Listed LED Power Supply from China LED Light Manufacturer Haichang Optotech, Waterproof, IP67, 0.95 power factor, built-in active PFC function.

Request a Quote

Keyword:

Previous: UL Listed Non-waterproof LED Power SupplyNext: Rainproof LED Power Supply

Description:

We supply MEANWELL UL listed Waterproof LED power supply 35W - 350W for Residential LED lighting, under cabinet LED lighting, LED signage lighting, LED commercial lighting and LED architectural lighting, etc..

Product Features:

Safety standard: UL8750, CSA C22.2 No. 250.0-08, EN61347-1, EN61347-2-13 independent IP65 or IP67, J61347-1, J61347-2-13 approved ;
Design refer to UL60950-1, TUV EN60950-1
Built-in active PFC function
High efficiency up to 95%
Universal AC input range, up to 305VAC
Cooling by free air convection
Protections: Short circuit / Overload / Over voltage/Over temperature
Suitable for various outdoor LED lighting applications
Waterproof Protection standard: IP67
Working temperature: -40℃ to +70℃
Working Humidity: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40℃ ~ +80℃, 10 ~ 95% RH
Compliant with RoHS, CE, UL certificates
5-year warranty

Technical details:

Output Wattage	Protection Degree	Input Voltage	Output Voltage	Power Factor	Dimension (mm)
60W	IP67	90 ~ 264VAC	DC12V/ DC24V	0.95	17161.536.8mm
100W	IP67	90 ~ 264VAC	DC12V/ DC24V	0.95	2206838.8mm
150W	IP67	90 ~ 264VAC	DC12V/ DC24V	0.95	2286838.8mm
240W	IP67	90 ~ 264VAC	DC12V/ DC24V	0.95	244.26838.8mm
320W	IP67	90 ~ 305VAC	DC12V/ DC24V	0.95	2529043.8mm
