Waterproof LED Power Supply

Short Description

name: Waterproof LED Power Supply
Model:

Buy Waterproof LED Power Supply from China LED Light Manufacturer Haichang Optotech, 15W-200W, IP66, over 50000H lifetime, dust & overload protection.

Request a Quote

Keyword:

Previous: Rainproof LED Power SupplyNext: Non-waterproof LED Power Supply

Description:

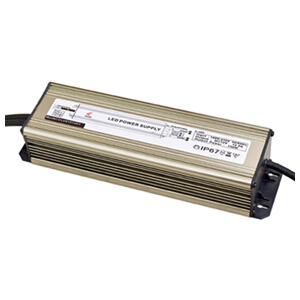

Waterproof LED Power Supply 15W - 200W

Features:

Safety standards: GB4943 UL60950 EN60950
EMC standards: GB9254 EN55022 class A
MTBF:>50,000hours
High efficiency
Compact size
Aluminum housing
Wide input voltage
Short circuit protection
Overload protection
Waterproof and dust protection IP66
Working temperature: -10℃~+50℃
Storage temperature: -20℃~+85℃
Compliant with RoHS, CE certificates
2 years warranty

Technical details:

Output Wattage	Protection Degree	Output Current	Input Voltage	Output Voltage	Dimension (mm)
15W	IP66	1.25A 0.58A	110-250V	12V±0.5V 24V±0.5V	160X25.5X26.5
30W	IP66	2.5A 1.25A	90-130V 170-250V	12V±0.5V 24V±0.5V	217X28.5X20
50W	IP66	4.2A 2.1A	90-130V 170-250V	12V±0.5V 24V±0.5V	2155239
60W	IP66	5A 2.5A	90-130V 170-250V	12V±0.5V 24V±0.5V	2155239
100W	IP66	8.3A 4.17A	90-130V 170-250V	12V±0.5V 24V±0.5V	2307254
150W	IP66	12.5A 6.25A	90-130V 170-250V	12V±0.5V 24V±0.5V	2607254
200W	IP66	15A	90-130V 170-250V	12V±0.5V 24V±0.5V	2957254
