6W Ultra-thin LED Ceiling Light

Short Description

name: 6W Ultra-thin LED Ceiling Light
Model: HC-L10024-W

Buy Ultra-thin LED Ceiling Light from China LED Light Manufacturer Haichang Optotech, 6W power, 320-350LM, DC24V voltage, Epistar 3528 SMD LED.

Description:

The 6W Ultra-thin LED Ceiling Light uses high quality Epistar 3528 SMD LED as light source. It's very bright with even light output. It occupy very limited space on the ceiling, so it makes the installation much easier and flexible. It apply constant current driving system with wide voltage range: AC100-240V. The size of opening hole can be made according to customers' request.

Product features:

Energy saving up to 50%, very even light output
Light source:  High quality 3528 SMD LED
Each group of LEDs work independently
Instant start, no flickering, no humming
3 year warranty

Technical datas:

Power:  6W
Working voltage: DC24V
Light output (Lumens):  320-350LM
Beam Angel: 120 degree
Color temperature: White / Warm white / Nature white (2700K-7000K)
Color Rendering Index (CRI): >80
Size: 100 x100 x 26mm(Thickness)
Hole size:
L: 85~90mm   W:85~90mm
Housing material: Die-cast aluminum alloy
Finishing color: White, Silver, etc..
Operation Temperature: -20
° to +50°

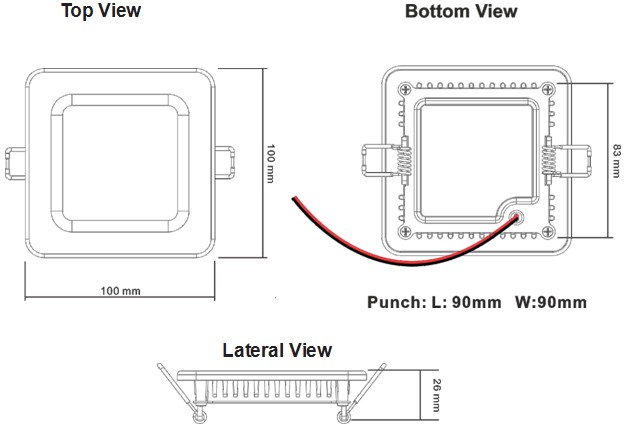

Drawing:



Light Distribution Graph:



Applications:

Our
Ultra-thin LED Ceiling Light can directly replace traditional ceiling lights or halogen down lights.
