3030 SMD LED Spotlight, MR16, 4W 5W 6W

Home >Products >LED Light Bulbs >LED Spotlights

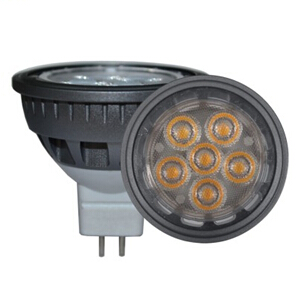

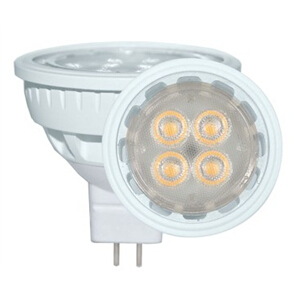

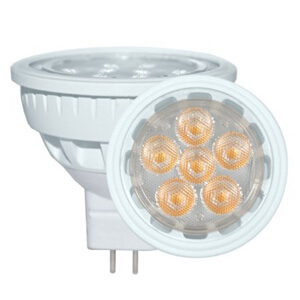

3030 LED MR16 Spotlight 4W 5W 6W

Short Description

name: 3030 LED MR16 Spotlight 4W 5W 6W
Model: MR16-3030DW4/5/6X1W

Buy Seoul or Epistar 3030 SMD LED MR16 Spotlight from China LED Light Manufacturer Haichang Optotech, 4W 5W 6W, AC/DC12V input voltag, various lens.


Haichang Optotech makes 3030 LED MR16 Spotlight 4W, 5W and 6W. It is aluminum alloy housed with reflector. It uses Seoul or Epistar 3030 SMD LED with high bright light output and high CRI.


Patented heat sinking design, AL6063 aluminum alloy housing, reflector cup, glass cover
Light source: Seoul/Epistar 3030 SMD LED, CRI>80/90
1%-100% Triac Dimmable, compatible with both leading edge and trailing edge dimmers, quiet and steady dimming

Transparent PC lens, high light transmittance and good heat resisting
Very bright, even light output, no light leakage
High efficiency LED driver
Less light degradation(less than 0.2% per 3000h)
Various lens, 20°30°40°60°beam angle available
Standard size, can replace halogen directly
Gray, Silver, White housing for options
50,000 hours long lifetime, low power consumption
Impact resistance, shock-proof, UV free, IR free
Surface temperature not exceed 65℃
Compliant with CE, RoHS, SAA, EMC, LVD, C-Tick, ERP
3-year warranty

Technical Details:

Light Base: MR16
Input Voltage:AC/DC12V
Power: 4W, 5W, 6W
Luminous flux: 280-300LM (4W), 380-400LM (5W), 480-500 (6W)
Light efficiency: 80LM/W
Color rendering index(CRI): Ra80, Ra90
Beam angle:  24°36°30°40°60°
Color temperature: 2700K-6500K
Dimension:   D50*48mm
IP grade: IP54


Net weight: 50g
Gross weight: 60g
Quantity: 100pcs
Carton size: 59cm*28.5cm*16.5cm
Gross weight: 7KG


Direct replacement of halogen MR16 35-45W.
Illumination and decoration at villa, shop, counter, cabinet, hotel, restaurant, meeting room, showroom, telephone booth, family decoration, etc.

Remarks and cautions:

Switch off the electricity before replacing the lamp
Keep away from direct sunshine and high temperature
The product is Non-waterproof.
Indoor use only.
