COB LED MR16 Spotlight 9W

Short Description

name: COB LED MR16 Spotlight 9W
Model: MR16COBDW1X9W

Buy COB MR16 LED Spotlight from China LED Light Manufacturer Haichang Optotech, 9W power, 680-700LM, beam angle 30/40/60 deg, D50*72mm dimension.


Haichang Optotech makes COB LED MR16 Spotlight 9W. It is aluminum alloy housed with reflector. It apply Sharp or Epistar COB LED with high bright light output and high CRI.


Patented heat sinking design, AL6063 aluminum alloy housing, reflector cup
Light source: Sharp/Citizen/Epistar COB LED, CRI>80/90
1%-100% Triac Dimmable, compatible with both leading edge and trailing edge dimmers, quiet and steady dimming

Transparent PC lens, high light transmittance and good heat resisting
Very bright, even light output, no light leakage
High efficiency LED driver
Various lens, 20°30°40°60°beam angle available
Standard size, can replace halogen directly
Gray, Silver, White housing for options
50,000 hours long lifetime, low power consumption
Impact resistance, shock-proof, UV free, IR free
Surface temperature not exceed 66℃
Compliant with CE, RoHS, SAA, EMC, LVD, C-Tick, ERP
3-year warranty

Technical Details:

Light Base: MR16
Input Voltage:AC/DC12V
Power: 9W
Luminous flux: 680-700LM
Light efficiency: 80LM/W
Color rendering index(CRI): Ra80, Ra90

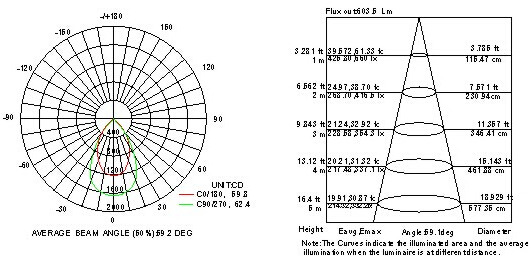

Beam angle:  30°40°60°
Color temperature: 2700K-6500K

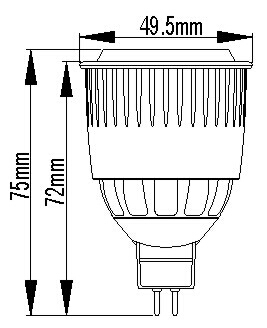

Dimension:   D50*72mm
IP grade: IP54


Net weight: 86g
Gross weight: 105g
Quantity: 100pcs
Carton size: 59cm*30cm*24cm
Gross weight: 11KG


Direct replacement of halogen MR16 50-75W.
Illumination and decoration at villa, shop, counter, cabinet, hotel, restaurant, meeting room, showroom, telephone booth, family decoration, etc.

Remarks and cautions:

Switch off the electricity before replacing the lamp
Keep away from direct sunshine and high temperature
The product is Non-waterproof.
Indoor use only.
