A Series COB LED Down Light

Short Description

name: A Series COB LED Down Light
Model: HC-DL-CA

Buy COB LED Downlight from China LED Light Manufacturer Haichang Optotech, Epistar COB LED, anti-glare cover, various beam angle available.

Request a Quote

Keyword:best LED light bulbs,

Previous: B Series COB LED Down LightNext: Jade Series LED Downlight

Description:

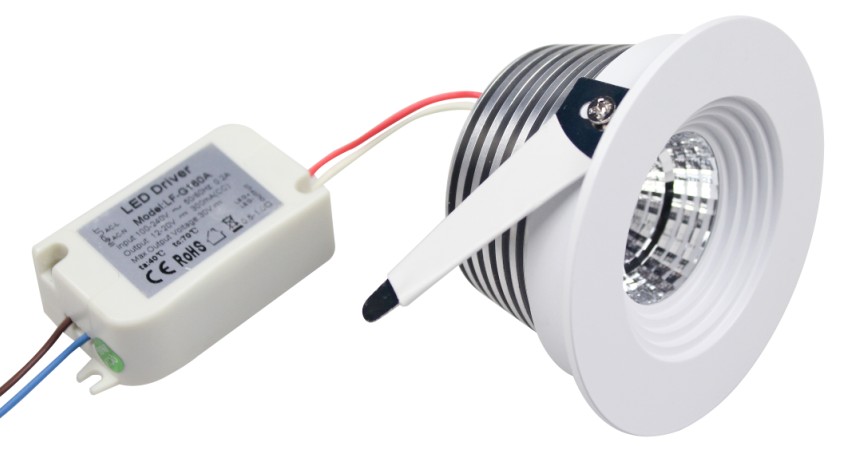

Concise A series COB LED down light, 5W Recessed LED Down Light

Feature:

Epistar COB LED, very even light output
High efficiency: >90LM/W
Various beam angle available
with anti-glare cover
Die casting aluminum alloy housing, good heat sinking design
External LED driver included, work under AC100-240V directly
Color Temperature: Warm White(2500-3200K),Nature White(4000-4500K),Cool White(6000-7500K)
Color Rendering Index (CRI): >72
Instant start, no fluorescent flickering, no Hg or lead contamination
Long life span: more than 50,000 hours
CE & ROHS compliant, 2-year warranty

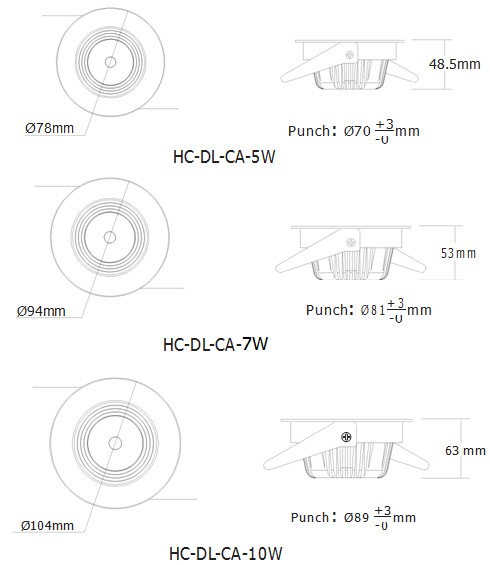

Dimension:

Technical details:

5W:

Light output: 340±10Lm
Size: ф78*48.5mm
Hole Size: Φ70-73mm
Beam Angle: 23°

7W:

Light output: 650±20Lm
Size: ф94*53mm
Hole Size: Φ81-84mm
Beam Angle: 17°/38°/58°

10W:

Light output: 960±30Lm
Size: ф104*63mm
Hole Size: Φ89-92mm
Beam Angle: 22.5°/36.5°/56°

Light source: Epistar COB LED
Input voltage: AC100-240V
Power Factor (PF): >0.9
Emitting Color: Warm White(2500-3200K),Nature White(4000-4500K),Cool White(6000-7500K)
Color Rendering Index (CRI): >72
Housing material: Die-cast aluminum alloy
Finishing color: White
Operation Temperature: -20 to +50 degrees Celsius
