Jade Series
LED Down light is a brand new LED fixture with diffuse lighting effect for indoor LED lighting. The light body uses die casting aluminum. The light surface is paint with high diffuse, high thermal conductive and heat sinking materials. The downlight applies five-side emitting Nichia LED chips originally from Japan. It gives diffuse light and the LED chips are invisible. It looks like that the LED downlight gives out light simply from the round panel. The soft light is very friendly to human eyes. The award winning design is beautiful, compact and Luxurious. The excellent heat sinking design and external LED power supply has minimized lumen depreciation, which makes sure minimum 3-5 years stable performance.
Product Features:
Subversive diffuse technology - Ultra soft beam, beyond your imagination, minimize harm to human eyes
Imported five-side emitting Nichia LED chips – omnibearing heat sinking design, high efficiency and safe
Disruptive 160°beam angle - redefine man-made diffuse lighting effect, restore nature light environment.
Environmentally-friendly aluminum alloy light body, light weight
Integrative concise structure design
Extremely short response time, Instant start, no flickering or glare, no humming.
Can be turned on and off frequently and be adapted to various lighting environment.
No fluorescent flicking, no contamination of mercury or Lead.
Nichia mini power LED, CRI>80
Over 50% Energy saving
Working Temperature: -20~50°C.
Life span is longer than 50,000 hours,
Ip20, non-waterproof.
3 year warranty, No headache for years
Applications:
Directly replace traditional ceiling lights or halogen down lights.
Dimensions:

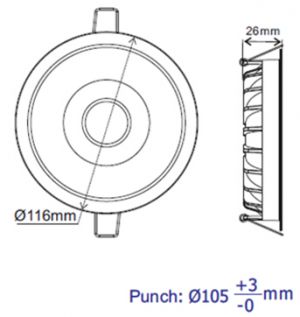

HC-DL-YP-A:

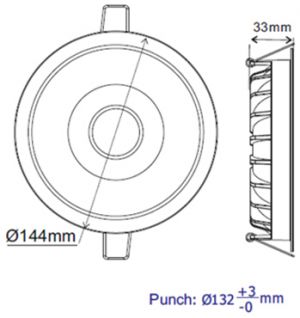

HC-DL-YP-B:

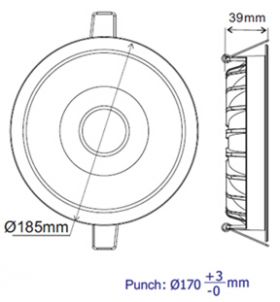

HC-DL-YP-C:
Technical datas:
Model |
Power
(W) |
Luminous Flux
(LM) |
Dimension
(±2mm) |
Hole size
(±3mm) |
Color Temp. |
CRI
(Ra) |
Beam
Angle |
|
|
HC-DL-YP-A |
9.5 |
700±10% |
Ф116*26mm |
107~110mm |
2700-6500K |
>80 |
160º |
|
HC-DL-YP-B |
13.5 |
1150±10% |
Ф144*33mm |
135~138mm |
2700-6500K |
>80 |
160º |
|
HC-DL-YP-C |
18 |
1350±10% |
Ф185*39mm |
173~176mm |
2700-6500K |
>80 |
160º |
|
Input voltage: AC100-240V
Installation:

1. As above picture, punch at the point where needs to install the down light. For punch dimension, please refer to above technical data.
2.As above picture, wire the AC terminal of the power supply to the main power line ( attention: this process should be operated only after cut off the power supply) . After connected, check if thedownlight can be lit up or not.
3. When it is confirmed that the downlight can be lit up successfully, cut off power supply, pull the two springs vertically as above picture and embed the downlight into ceiling.
4. As above picture, installation Finished.
