LED Batten Light

Short Description

name: LED Batten Light
Model: BL-120W40-2835

Haichang Optotech supply intelligent LED batten light with multi dimming options. The brightness is dimmable between 20%, 50% and 100% by switch on and off. The color temperature can be adjustable between white, nature white and warm white by switching on/off. Microwave sensor is available too with detection angle of 120° and detection distance of 10m.

Description:

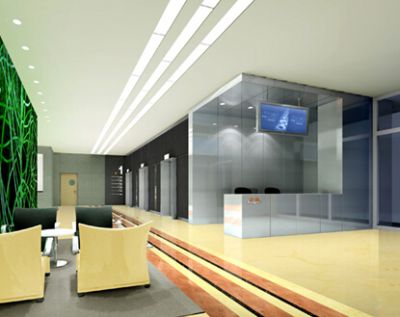

The LED batten light is designed for application in residential and commercial lighting such as offices,conference rooms,meeting rooms,factories,schools,colleges and universities,etc.. It has various dimming options.

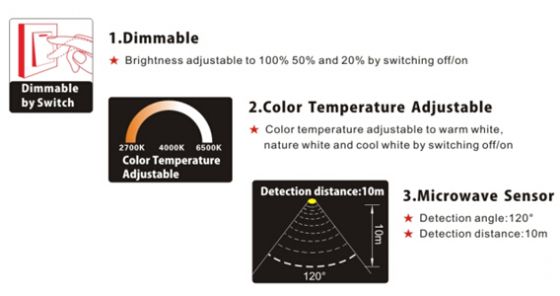

Features:

Brightness dimmable to 100%, 50% or 20% by switch on/off
Color temperature adjustable by switching on/off
Microwave sensor available:
detection angle 120°, detection distance: 10m


Aluminum alloy, good heat dissipation, IP44
PC Milky cover. Magic and soft lighting effect.
Epistar SMD LED, high efficiency 90LM/W, RA>80,
Beam angle 120°

50,000 hours lifespan, Energy saving 50-80%
Solid-state, high shock resistant. No flickering.
Compliant with CE, Rohs
3 years Warranty





Technical Descriptions:


Model Tube

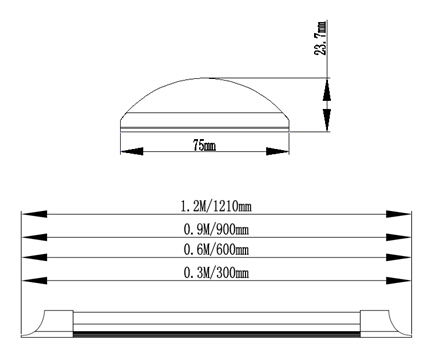

Dimension
Power Input
voltage
Kelvin
Tc(K)
Lumens
(Lm)
PF

BL-030W10-2835 0.3M(24*75*300) 10±1W AC220-240V 2700-6500K 900±50lm >0.8
BL-060W20-2835 0.6M(24*75*600) 20±1W AC85~277V 2700-6500K 1800±100lm >0.8
BL-090W30-2835 0.9M(24*75*900) 30±1W AC85~277V 2700-6500K 2500±100lm >0.8
BL-120W40-2835 1.2M(24*75*1200) 40±1W AC85~277V 2700-6500K 3800±100lm >0.8

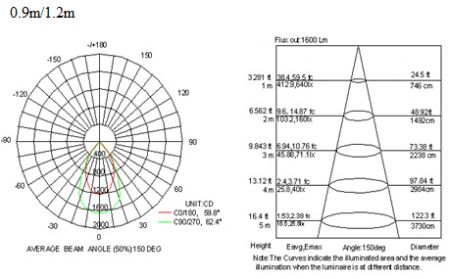

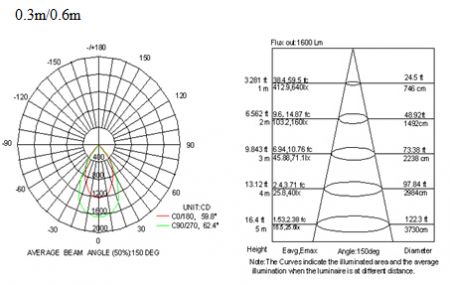

Optical parameter:

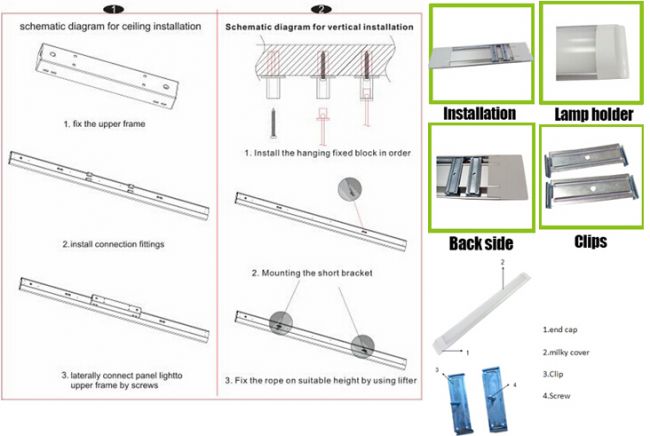

Installation:



Packaging:
