TUV & SAA Approved LED Tube, 2835/3528 SMD

TUV Approved LED Tube

Short Description

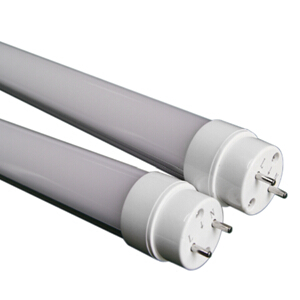

name: TUV Approved LED Tube
Model: T8-TUV120W20

TUV and SAA approved LED T8 Tube light is extremely safe for wide applications. Uses 2835 or 3528 SMD LED as light source. Our new safer design apply built-in isolated power driver to enable highest quality and safety.

Request a Quote

Keyword:led indoor lighting, Retrofit LED tube, LED tube light, LED pipe, T8 LED tube light,

Previous: Infrared Sensor LED Tube LightNext: Magnetic Electronic Compatible LED Tube

Description:

Features:

TUV and SAA safety certification approved
Built-in isolated power supply of high quality
Epistar 2835/3528 SMD LED: High luminous efficiency
140º beam angle, Color rendering Index (CRI)≥80

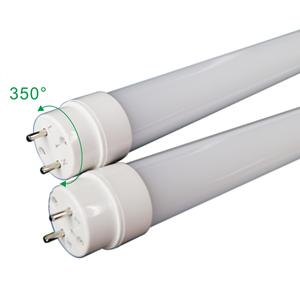

Lamp holder rotatable
3 years warranty

Aluminum alloy body
High-grade PC cover with high light transmittance (>95%)
Transparent and frosted PC cover available
High quality aluminum PCB with better heat dissipation
Power Factor (PF)≥0.95
Wide voltages available: AC85V-277V
Low thermal resistance, Super low degradation
No dark area
Ambient temperature:-20℃~40℃, surface temperature: 42℃~45℃
Easy mounting: working without electronic ballast or starter
80% Energy-saving over fluorescent tubes
50,000+ hours lifetime
Instant start without Flickering
No mercury, lead or other hazardous materials; no radiation, no electromagnetic radiation
CE, RoHS compliant

Dimensions:

Specifications:

600mm LED tube

Model	Length (Feet/Meter)	Diameter (mm)	LED QTY	Watt (W)	Operating Voltage	Color and Kelvin Tc (K)	Lumens (Lm)
T8-TUV060W10WW -2835	2 FT / 0.6M	26mm	54	10W	AC85-277V	Warm White (2800K-3200K)	850±5%
T8-TUV060W10CW -2835	2 FT / 0.6M	26mm	54	10W	AC85-277V	Commercial White (4000-4500K)	930±5%
T8-TUV060W10PW -2835	2 FT / 0.6M	26mm	54	10W	AC85-277V	Pure White (5500K-6500K)	1000±5%

1200mm LED tube

Model	Length (Feet/Meter)	Diameter (mm)	LED QTY	Watt (W)	Operating Voltage	Color and Kelvin Tc (K)	Lumens (Lm)
T8-TUV120W18WW-2835	4 FT / 1.2M	26mm	110	18W	AC85-277V	Warm White (2800K-3200K)	1620±5%
T8-TUV120W18CW-2835	4 FT / 1.2M	26mm	110	18W	AC85-277V	Commercial White (4000-4500K)	1710±5%
T8-TUV120W18PW-2835	4 FT / 1.2M	26mm	110	18W	AC85-277V	Pure White (5500K-6500K)	1800±5%

Model	Length (Feet/Meter)	Diameter (mm)	LED QTY	Watt (W)	Operating Voltage	Color and Kelvin Tc (K)	Lumens (Lm)
T8-TUV120W20WW-2835	4FT / 1.2M	26mm	110	20W	AC85-277V	Warm White (2800K-3200K)	1810±5%
T8-TUV120W20CW-2835	4FT / 1.2M	26mm	110	20W	AC85-277V	Commercial White (4000-4500K)	1900±5%
T8-TUV120W20PW-2835	4FT / 1.2M	26mm	110	20W	AC85-277V	Pure White (5500K-6500K)	2000±5%

1500mm LED tube

Model	Length (Feet/Meter)	Diameter (mm)	LED QTY	Watt (W)	Operating Voltage	Color and Kelvin Tc (K)	Lumens (Lm)
T8-TUV150W22WW-2835	5 FT / 1.5M	26mm	144	22W	AC85-277V	Warm White (2800K-3200K)	2100±5%
T8-TUV150W22CW-2835	5 FT / 1.5M	26mm	144	22W	AC85-277V	Commercial White (4000-4500K)	2240±5%
T8-TUV150W22PW-2835	5 FT / 1.5M	26mm	144	22W	AC85-277V	Pure White (5500K-6500K)	2300±5%

Model	Length (Feet/Meter)	Diameter (mm)	LED QTY	Watt (W)	Operating Voltage	Color and Kelvin Tc (K)	Lumens (Lm)
T8-TUV150W25WW-2835	5 FT / 1.5M	26mm	144	25W	AC85-277V	Warm White (2800K-3200K)	2200±5%
T8-TUV150W25CW-2835	5 FT / 1.5M	26mm	144	25W	AC85-277V	Commercial White (4000-4500K)	2330±5%
T8-TUV150W25PW-2835	5 FT / 1.5M	26mm	144	25W	AC85-277V	Pure White (5500K-6500K)	2450±5%

Installation:

Installation of One Side Power in Tube:

Installtion of Both Sides Power in Tube:

Packaging:

0.6m LED tube:
Carton size: 67*23*23CM
Quantity: 25pcs per carton
G.W.: 8.2kg/carton

1.2m LED tube:
Carton size: 127*23*23CM
Quantity: 25pcs per carton
G.W.: 14.8kg/carton

1.5m LED tube:
Carton size: 157*23*23CM
Quantity: 25pcs per carton
G.W.: 18.55kg/carton

Applications:
Commercial lighting for offices,restaurants,hotels,warehouses,parking lots,shopping malls;
Display lighting for the articles in stores and shops.

Attentions:
Working environment: -20℃ to 45℃
Work without ballast
Indoor application only
