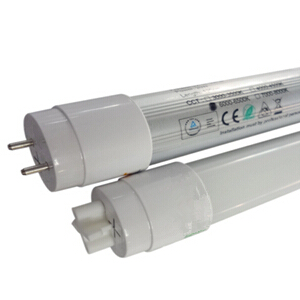

Magnetic Electronic Compatible LED Tube

Short Description

name: Magnetic Electronic Compatible LED Tube
Model: T8-ME120W20PW-2835

This kind of LED tube is compatible with both Magnetic and Electronic ballast, therefore, it is able to replace traditional fluorescent tubes directly. Our new safer design apply built-in isolated power driver to enable highest quality and safety.

Request a Quote

Keyword:led interior lighting, led indoor lighting, LED tube light, LED pipe, T8 LED tube light,

Previous: TUV Approved LED TubeNext: ETL Approved LED Tube

Description:

Features:

Magnetic and Electronic compatible
Built-in isolated power supply of high quality
Epistar 2835 SMD LED
High luminous efficiency: >115LM/Watt
140º beam angle, Color rendering Index (CRI)≥80
Aluminum alloy body
High-grade PC cover with high light transmittance (>95%), No dark area
Transparent and frosted PC cover available
High quality aluminum PCB with better heat dissipation
Wide voltages available: AC85-265V
Power Factor (PF)≥0.95
Low thermal resistance, Super low degradation
Ambient temperature:-20℃~45℃, surface temperature: 42℃~45℃
Easy mounting: working without electronic ballast or starter
80% Energy-saving over fluorescent tubes
50,000+ hours lifetime
Instant start without Flickering
No mercury, lead or other hazardous materials; no radiation, no electromagnetic radiation, no hurting eyes
CE, RoHS compliant

Dimensions:

Standard Length	Dimension (mm)
Standard Length	A (MAX)	B (MAX)	C (MAX)	D (MAX)
0.6M	590	597	604	26
1.2M	1198	1206	1213	26
1.5M	1500	1507	1514	26

Specifications:

600mm LED tube

Model	Length (Feet/Meter)	Diameter (mm)	LED QTY	Watt (W)	Operating Voltage	Color and Kelvin Tc (K)	Lumens (Lm)
T8-ME060W10WW -2835	2 FT / 0.6M	26mm	108	10W	AC85-265V	Warm White (2800K-3200K)	930±5%
T8- ME060W10CW -2835	2 FT / 0.6M	26mm	108	10W	AC85-265V	Commercial White (4000-4500K)	1100±5%
T8- ME060W10PW -2835	2 FT / 0.6M	26mm	108	10W	AC85-265V	Pure White (5500K-6500K)	1200±5%

1200mm LED tube

Model	Length (Feet/Meter)	Diameter (mm)	LED QTY	Watt (W)	Operating Voltage	Color and Kelvin Tc (K)	Lumens (Lm)
T8-ME120W20WW-2835	4FT / 1.2M	26mm	192	20W	AC85-265V	Warm White (2800K-3200K)	2150±5%
T8-ME120W20CW-2835	4FT / 1.2M	26mm	192	20W	AC85-265V	Commercial White (4000-4500K)	2270±5%
T8-ME120W20PW-2835	4FT / 1.2M	26mm	192	20W	AC85-265V	Pure White (5500K-6500K)	2350±5%

1500mm LED tube

Model	Length (Feet/Meter)	Diameter (mm)	LED QTY	Watt (W)	Operating Voltage	Color and Kelvin Tc (K)	Lumens (Lm)
T8-ME150W24WW-2835	5 FT / 1.5M	26mm	234	24W	AC85-265V	Warm White (2800K-3200K)	2600±5%
T8-ME150W24CW-2835	5 FT / 1.5M	26mm	234	24W	AC85-265V	Commercial White (4000-4500K)	2750±5%
T8-ME150W24PW-2835	5 FT / 1.5M	26mm	234	24W	AC85-265V	Pure White (5500K-6500K)	2880±5%

Installation:

Installation of One Side Power in Tube:

Installtion of Both Sides Power in Tube:

Packaging:

0.6m LED tube:
Carton size: 67*23*23CM
Quantity: 25pcs per carton
G.W.: 8.2kg/carton

1.2m LED tube:
Carton size: 127*23*23CM
Quantity: 25pcs per carton
G.W.: 14.8kg/carton

1.5m LED tube:
Carton size: 157*23*23CM
Quantity: 25pcs per carton
G.W.: 18.55kg/carton

Applications:
Commercial lighting for offices,restaurants,hotels,warehouses,parking lots,shopping malls;
Display lighting for the articles in stores and shops.

Attentions:
Working environment: -20℃ to 45℃
Work without ballast
Indoor application only
