UL DLC certified LED Tube 2835 270deg angle

Home >Products >LED Tubes >LED T8 Tubes

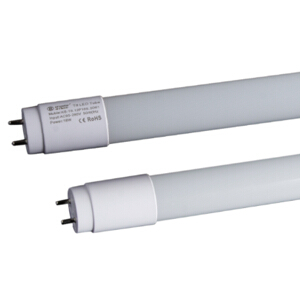

UL DLC Listed LED Tube

Short Description

name: UL DLC Listed LED Tube
Model: T8-120W18-2835-UL

UL & DLC certified LED Tube is specially designed for North America market. It uses 2835 SMD LED as light source. We apply built-in led driver to enable highest quality and safety.

Description:

The UL and DLC listed LED Tube is specially designed for USA and Canada market with supreme quality. The tube has wide beam angle of 270o . It’s made of high quality Epistar 2835 SMD LED, aluminum PCB, aluminum light body, PC cover and quality built-in LED driver. So far it has been widely used in many applications such as commercial lighting for offices, restaurants, hotels, warehouses, parking lots, shopping malls, etc..

Features:

Supreme quality, 3 years warranty, UL and DLC certified
Aluminum housing + PC cover
Epistar 2835 SMD LED, >110Lm/W, CRI >80
270o Wide beam angle
High quality LED driver
Power Factor (PF)≥0.9
Low thermal resistance, Super low degradation
Wide input Voltage: AC85V~277V
Working temperature: -20°C~45°C

Easy mounting: working without electronic ballast or starter
80% Energy-saving over fluorescent tubes
50,000+ hours lifetime
Instant start without Flickering
No mercury, lead or other hazardous materials; no radiation, no electromagnetic radiation


Specifications:

Model LED
quantity
Dimension Power Input
voltage
Kelvin
Tc(K)
Lumens
(Lm)
T8-060W10-2835-UL 2835 LED
60pcs
2Feet
L590mm
×Ф26mm
10±1W AC95~265V 2500K-2800K
2800K-3200K
950±50lm
3750K-4250K   1040±50lm
4750K-5300K
5700K-6500K
1100±50lm
T8-120W18-2835-UL 2835 LED
120pcs
4 Feet
L1198mm
×Ф26mm
18±2W AC95~265V 2500K-2800K
2800K-3200K
1850±100lm
3750K-4250K   1950±100lm
4750K-5300K
5700K-6500K
2000±100lm
T8-150W24-2835-UL 2835 LED
150pcs
5 Feet
L1498mm
×Ф26mm
24±2W AC95~265V 2500K-2800K
2800K-3200K
2400±100lm
3750K-4250K   2530±100lm
4750K-5300K
5700K-6500K
2600±100lm


Packaging:

0.6m LED tube:
Carton size: 67*23*23CM
Quantity: 25pcs per carton
G.W.: 8.2kg/carton

1.2m LED tube:
Carton size: 127*23*23CM
Quantity: 25pcs per carton
G.W.: 14.8kg/carton

1.5m LED tube:
Carton size: 157*23*23CM
Quantity: 25pcs per carton
G.W.: 18.55kg/carton

Attentions:

Working environment: -20℃ to 45℃
Work without ballast
Indoor application only
