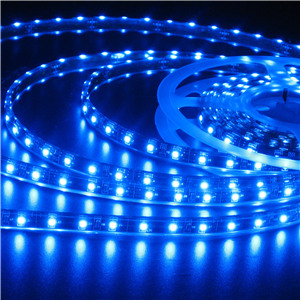

3528 LED Flexible Strips IP68 Waterproof
Short Description
name: 3528 LED Flexible Strips IP68 Waterproof
Model: WDG-3528W-12/24-60
Model: WDG-3528W-12/24-60
It is irrigation glued with epoxy on double sides and then overall covered by silicone tube. There’s 3M tape on the back side. The protection degree is IP68.
Description:
3528 LED flexible strips waterproof IP68
Haichang Optotech launched its IP68 waterproof LED Flexible Strip for outdoor decoration since the year 2009, one year after we started our LED business. It is irrigation glued with epoxy on double sides and then overall covered by silicone tube. There’s 3M tape on the back side. The protection degree is IP68 which means it is able to work normally while immersed completely in water. Made of super bright 3528 SMD LED, it is quite bright, rugged and durable. It works under DC12V or DC24V which is safer than high voltage tubes or strips. It is cuttable every three or six LEDs.
Product features:
3-year warranty
Super bright Epistar SMD 3528 LED as light source, CRI>80
Both White and Brown PCB board available
3M tape on back side
Low power consumption
50,000 hours lifetime
Flexible application: small space required; every three or six LEDs a loop; each loop can be easily cut off from the incising line
Instant start, no flickering, no humming
Low voltage power supply - very safe
Various number of LEDs, sizes and colors available
CE & RoHS compliant
Specifications:
1. Available colors: red/ green /blue /yellow/ pink/ white(4000-7000K) / warm white(2400-3500K)
2. LED Quantity: 30/60/120/180 pcs per meter
3. Working Voltage: DC12 or DC24V
4. Luminous: 120~1200lm
5. Viewing Angle: 120 degree
6. Operating temperature: -20℃~50℃
7. Packing: 5 meter per reel
Technical datas:
60LED/m LED Flexible strips waterproof IP68:
120LED/m LED Flexible strips waterproof IP68:
Applications:
Our LED flexible strips are widely used in:
1. Architectural decorative lighting for canopy, corridor, window, archway, bridge edge lighting
2. Back lighting or edge lighting for signage letters and channel letters
3. Cove lighting, concealed lighting
4. Decorative lighting for festivals, events, shows, exhibitions
5. Contour lighting: stairway, aisle
6. DIY lighting for indoor use
Attentions:
Not to be used in sealed or hot places.
Haichang Optotech launched its IP68 waterproof LED Flexible Strip for outdoor decoration since the year 2009, one year after we started our LED business. It is irrigation glued with epoxy on double sides and then overall covered by silicone tube. There’s 3M tape on the back side. The protection degree is IP68 which means it is able to work normally while immersed completely in water. Made of super bright 3528 SMD LED, it is quite bright, rugged and durable. It works under DC12V or DC24V which is safer than high voltage tubes or strips. It is cuttable every three or six LEDs.
Product features:
3-year warranty
Super bright Epistar SMD 3528 LED as light source, CRI>80
Both White and Brown PCB board available
3M tape on back side
Low power consumption
50,000 hours lifetime
Flexible application: small space required; every three or six LEDs a loop; each loop can be easily cut off from the incising line
Instant start, no flickering, no humming
Low voltage power supply - very safe
Various number of LEDs, sizes and colors available
CE & RoHS compliant
Specifications:
1. Available colors: red/ green /blue /yellow/ pink/ white(4000-7000K) / warm white(2400-3500K)
2. LED Quantity: 30/60/120/180 pcs per meter
3. Working Voltage: DC12 or DC24V
4. Luminous: 120~1200lm
5. Viewing Angle: 120 degree
6. Operating temperature: -20℃~50℃
7. Packing: 5 meter per reel
Technical datas:
60LED/m LED Flexible strips waterproof IP68:
| Part Number | Color | Size / reel (mm) |
LED/m | Volt (V) |
Power (W) |
IP degree |
Lumens /meter |
| WDG-3528R-12/24-60 | Red | 5000*8*2.5 | 60 | 12/24 | 4.8 | IP68 | 120 |
| WDG-3528Y-12/24-60 | Yellow | 5000*8*2.5 | 60 | 12/24 | 4.8 | IP68 | 120 |
| WDG-3528B-12/24-60 | Blue | 5000*8*2.5 | 60 | 12/24 | 4.8 | IP68 | 150 |
| WDG-3528G-12/24-60 | Green | 5000*8*2.5 | 60 | 12/24 | 4.8 | IP68 | 240 |
| WDG-3528W-12/24-60 | White | 5000*8*2.5 | 60 | 12/24 | 4.8 | IP68 | 390 |
| WDG-3528WW-12/24-60 | Warm White | 5000*8*2.5 | 60 | 12/24 | 4.8 | IP68 | 360 |
120LED/m LED Flexible strips waterproof IP68:
| Part Number | Color | Size / reel (mm) |
LED/m | Volt (V) |
Power (W) |
IP degree |
Lumens /meter |
| WDG-3528R-12/24-120 | Red | 5000*8*2.5 | 120 | 12/24 | 9.6 | IP68 | 240 |
| WDG-3528Y-12/24-120 | Yellow | 5000*8*2.5 | 120 | 12/24 | 9.6 | IP68 | 240 |
| WDG-3528B-12/24-120 | Blue | 5000*8*2.5 | 120 | 12/24 | 9.6 | IP68 | 300 |
| WDG-3528G-12/24-120 | Green | 5000*8*2.5 | 120 | 12/24 | 9.6 | IP68 | 480 |
| WDG-3528W-12/24-120 | White | 5000*8*2.5 | 120 | 12/24 | 9.6 | IP68 | 780 |
| WDG-3528WW-12/24-120 | Warm White | 5000*8*2.5 | 120 | 12/24 | 9.6 | IP68 | 720 |
Applications:
Our LED flexible strips are widely used in:
1. Architectural decorative lighting for canopy, corridor, window, archway, bridge edge lighting
2. Back lighting or edge lighting for signage letters and channel letters
3. Cove lighting, concealed lighting
4. Decorative lighting for festivals, events, shows, exhibitions
5. Contour lighting: stairway, aisle
6. DIY lighting for indoor use
Attentions:
Not to be used in sealed or hot places.
