2835 LED Flexible Strips
Short Description
name: 2835 LED Flexible Strips
Model: N/W2835W-12/24-60
Model: N/W2835W-12/24-60
Buy 2835 LED Flexible Strips from China LED Light Manufacturer Haichang Optotech, 2835 SMD LED, up to 2520Lm, DC12 or DC24V voltage, 120 deg angle.
Keyword:12v LED strip, smd LED strip, waterproof LED strip lights, cheap LED light strips, LED ribbon,
Previous: High Lumen 5050 LED Strip 2 RowsNext: Indoor 3528 LED Rigid Strips
Description:

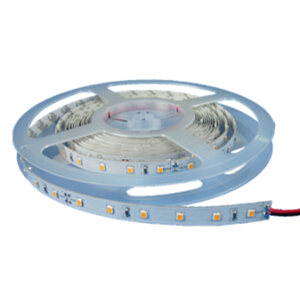

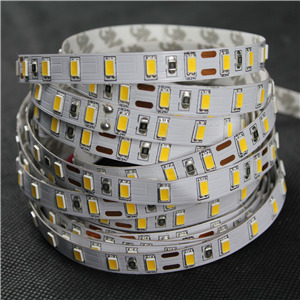

2835 LED flexible strips
The 2835 LED Flexible Strip is made of super bright 2835 SMD LED, rugged, durable. Waterproof or Non-waterproof available. It works under DC12V or DC24V which is safer than high voltage tubes or strips. It is cuttable every three or six LEDs.
Three types of Waterproof available:
a. IP65 Dropper glue Waterproof LED strip:
Single side glued LED strip, 3M tape on the back
b. IP67 single side glued and silicone tube covered Waterproof LED strip:
Covered by U-shape Silicone tube which is filled with epoxy or silicone glue, 3M tape on the back
c. IP68 Irrigation glued LED Strip:
Double side glued with epoxy and then overall covered by Silicone tube. 3M tape on the back.
Product features:
3-year warranty
Super bright Epistar SMD 2835 LED as light source, CRI>80
White PCB, Brown PCB and Black PCB board available
3M tape on back side
Low power consumption
50,000 hours lifetime
Flexible application: small space required; every three or six LEDs a loop; each loop can be easily cut off from the incising line
Instant start, no flickering, no humming
Low voltage power supply - very safe
Various number of LEDs, sizes and colors available
CE & RoHS compliant
Specifications:
1. Available colors: red/ green /blue /yellow/ pink/ white(4000-7000K) / warm white(2400-3500K)
2. LED Quantity: 60/120pcs per meter
3. Working Voltage: DC12 or DC24V
4. Luminous: up to 2520Lm
5. Viewing Angle: 120 degree
6. Operating temperature: -20℃~50℃
7. Packing: 5 meter per reel
Technical datas:
60LED per meter LED Flexible strips:
120LED per meter LED Flexible strips:
Applications:
Our LED flexible strips are widely used in:
1. Architectural decorative lighting for canopy, corridor, window, archway, bridge edge lighting
2. Back lighting or edge lighting for signage letters and channel letters
3. Cove lighting, concealed lighting
4. Decorative lighting for festivals, events, shows, exhibitions
5. Contour lighting: stairway, aisle
6. DIY lighting for indoor use
Attentions:
Not to be used in sealed or hot places.
The 2835 LED Flexible Strip is made of super bright 2835 SMD LED, rugged, durable. Waterproof or Non-waterproof available. It works under DC12V or DC24V which is safer than high voltage tubes or strips. It is cuttable every three or six LEDs.
Three types of Waterproof available:
a. IP65 Dropper glue Waterproof LED strip:
Single side glued LED strip, 3M tape on the back
b. IP67 single side glued and silicone tube covered Waterproof LED strip:
Covered by U-shape Silicone tube which is filled with epoxy or silicone glue, 3M tape on the back
c. IP68 Irrigation glued LED Strip:
Double side glued with epoxy and then overall covered by Silicone tube. 3M tape on the back.
Product features:
3-year warranty
Super bright Epistar SMD 2835 LED as light source, CRI>80
White PCB, Brown PCB and Black PCB board available
3M tape on back side
Low power consumption
50,000 hours lifetime
Flexible application: small space required; every three or six LEDs a loop; each loop can be easily cut off from the incising line
Instant start, no flickering, no humming
Low voltage power supply - very safe
Various number of LEDs, sizes and colors available
CE & RoHS compliant
Specifications:
1. Available colors: red/ green /blue /yellow/ pink/ white(4000-7000K) / warm white(2400-3500K)
2. LED Quantity: 60/120pcs per meter
3. Working Voltage: DC12 or DC24V
4. Luminous: up to 2520Lm
5. Viewing Angle: 120 degree
6. Operating temperature: -20℃~50℃
7. Packing: 5 meter per reel
Technical datas:
60LED per meter LED Flexible strips:
| Part Number | Color | Size / reel (mm) |
LED QTY per meter |
Volt (V) |
Power (W) |
IP degree |
Lumens /meter |
| N/W2835R-12/24-60 | Red | 5000*10*2.2 | 60 | 24 | 13.2W | IP20/65/67/IP68 | 380 |
| N/W2835Y-12/24-60 | Yellow | 5000*10*2.2 | 60 | 24 | 13.2W | IP20/65/67/IP68 | 380 |
| N/W2835B-12/24-60 | Blue | 5000*10*2.2 | 60 | 24 | 13.2W | IP20/65/67/IP68 | 490 |
| N/W2835G-12/24-60 | Green | 5000*10*2.2 | 60 | 24 | 13.2W | IP20/65/67/IP68 | 780 |
| N/W2835W-12/24-60 | White | 5000*10*2.2 | 60 | 24 | 13.2W | IP20/65/67/IP68 | 1260 |
| N/W2835WW-12/24-60 | Warm White | 5000*10*2.2 | 60 | 24 | 13.2W | IP20/65/67/IP68 | 1200 |
120LED per meter LED Flexible strips:
| Part Number | Color | Size / reel (mm) |
LED QTY per meter |
Volt (V) |
Power (W) |
IP degree |
Lumens /meter |
| N/W2835R-12/24-120 | Red | 5000*10*2.2 | 120 | 24 | 26.4 | IP20/65/67/IP68 | 760 |
| N/W2835Y-12/24-120 | Yellow | 5000*10*2.2 | 120 | 24 | 26.4 | IP20/65/67/IP68 | 760 |
| N/W2835B-12/24-120 | Blue | 5000*10*2.2 | 120 | 24 | 26.4 | IP20/65/67/IP68 | 980 |
| N/W2835G-12/24-120 | Green | 5000*10*2.2 | 120 | 24 | 26.4 | IP20/65/67/IP68 | 1560 |
| N/W2835W-12/24-120 | White | 5000*10*2.2 | 120 | 24 | 26.4 | IP20/65/67/IP68 | 2520 |
| N/W2835WW-12/24-120 | Warm White | 5000*10*2.2 | 120 | 24 | 26.4 | IP20/65/67/IP68 | 2400 |
Applications:
Our LED flexible strips are widely used in:
1. Architectural decorative lighting for canopy, corridor, window, archway, bridge edge lighting
2. Back lighting or edge lighting for signage letters and channel letters
3. Cove lighting, concealed lighting
4. Decorative lighting for festivals, events, shows, exhibitions
5. Contour lighting: stairway, aisle
6. DIY lighting for indoor use
Attentions:
Not to be used in sealed or hot places.
