High Lumen 3528 LED Strips

Short Description

name: High Lumen 3528 LED Strips
Model: WST3528W-24-360

We are professional manufacturer, factory, exporter and supplier of High lumen 3528 LED Strips CRI>80 from china. If you are looking to buy this, please contact Haichang Optotech.

Description:

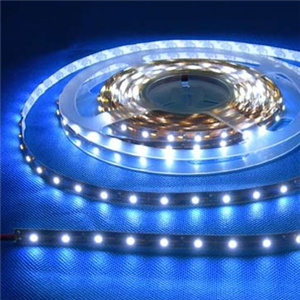

We supply high lumen 3528 LED flexible strips with 240LED/meter or 360LED/meter. Waterproof or Non-waterproof available. It can be widely used in LED under cabinet lighting, cove lighting, back lighting and residential lighting.

Product features:

3-year warranty
Super bright Epistar SMD 3528 LED as light source, CRI>80
Both White and Brown PCB board available
3M tape on back side
Low power consumption
Cuttable, flexible application: each 6 LEDs a cut
Instant start, no flickering, no humming
50,000 hours lifetime
CE & RoHS compliant

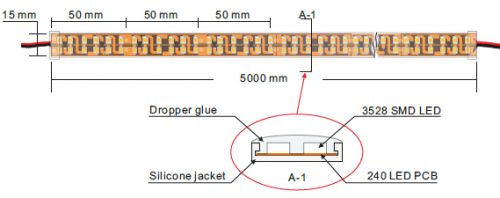

240LED/meter:

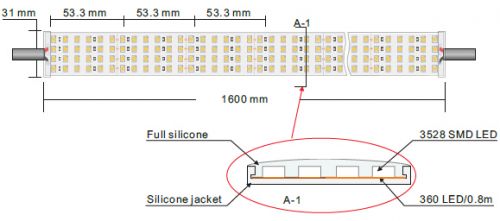

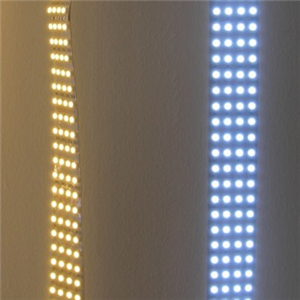

360LED/meter:



Specifications:
1. Available colors: red/ green /blue /yellow/ white/ warm white
2. LED Quantity: 240 LEDs per meter(2 rows) or 360 LEDs per 0.8 meter(4 rows)
3. Working Voltage: DC24V
4. Luminous: up to 2340lm
5. Viewing Angle: 120 degree
6. Operating temperature: -20
~50
7. Packing: 5m/reel (240LED/m), 4.8m/reel (360LED/0.8m)

Technical datas:

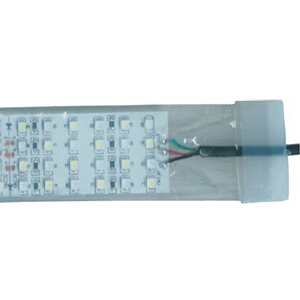

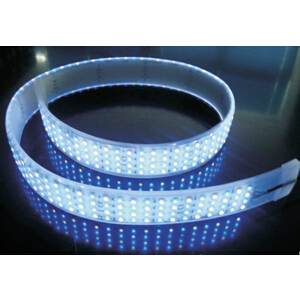

IP67 Silicone tube Waterproof High Lumen 3528 LED Strip: Covered by U-shape Silicone tube, 3M tape on the back:


Part Number Color Size/reel
(mm)
LED/m Volt
(V)
Power
(W)
Lumens
/meter
WST3528R-24-240 Red 5000*15*2.5 240 24 17.6 480
WST3528Y-24-240 Yellow 5000*15*2.5 240 24 17.6 480
WST3528B-24-240 Blue 5000*15*2.5 240 24 17.6 600
WST3528G-24-240 Green 5000*15*2.5 240 24 17.6 960
WST3528W-24-240 White 5000*15*2.5 240 24 17.6 1560
WST3528WW-24-240 Warm white 5000*15*2.5 240 24 17.6 1440

Part Number Color Size/reel
(mm)
LED/0.8m Volt
(V)
Power
(W)
Lumens
/meter
WST3528R-24-360 Red 4800*28*2.5 360 24 26.4 680
WST3528Y-24-360 Yellow 4800*28*2.5 360 24 26.4 680
WST3528B-24-360 Blue 4800*28*2.5 360 24 26.4 1250
WST3528G-24-360 Green 4800*28*2.5 360 24 26.4 1500
WST3528W-24-360 White 4800*28*2.5 360 24 26.4 2340
WST3528WW-24-360 Warm white 4800*28*2.5 360 24 26.4 2160

IP65 Drop glue Waterproof High Lumen 3528 LED Strip: Single side glued LED strip,3M tape on the back:

Part Number Color Size/reel
(mm)
LED/m Volt
(V)
Power
(W)
Lumens
/meter
WSG3528R-24-240 Red 5000*15*2.5 240 24 17.6 480
WSG3528Y-24-240 Yellow 5000*15*2.5 240 24 17.6 480
WSG3528B-24-240 Blue 5000*15*2.5 240 24 17.6 600
WSG3528G-24-240 Green 5000*15*2.5 240 24 17.6 960
WSG3528W-24-240 White 5000*15*2.5 240 24 17.6 1560
WSG3528WW-24-240 Warm white 5000*15*2.5 240 24 17.6 1440

Part Number Color Size/reel
(mm)
LED/0.8m Volt
(V)
Power
(W)
Lumens
/meter
WSG3528R-24-360 Red 4800*28*2.5 360 24 26.4 680
WSG3528Y-24-360 Yellow 4800*28*2.5 360 24 26.4 680
WSG3528B-24-360 Blue 4800*28*2.5 360 24 26.4 1250
WSG3528G-24-360 Green 4800*28*2.5 360 24 26.4 1500
WSG3528W-24-360 White 4800*28*2.5 360 24 26.4 2340
WSG3528WW-24-360 Warm white 4800*28*2.5 360 24 26.4 2160

Non-waterproof High Lumen LED Strip 3528 SMD, IP20:

Part Number Color Size/reel
(mm)
LED/m Volt
(V)
Power
(W)
Lumens
/meter
N3528R-24-240 Red 5000*15*2.5 240 24 17.6 480
N3528Y-24-240 Yellow 5000*15*2.5 240 24 17.6 480
N3528B-24-240 Blue 5000*15*2.5 240 24 17.6 600
N3528G-24-240 Green 5000*15*2.5 240 24 17.6 960
N3528W-24-240 White 5000*15*2.5 240 24 17.6 1560
N3528WW-24-240 Warm white 5000*15*2.5 240 24 17.6 1440

Part Number Color Size/reel
(mm)
LED qtyper
meter
Volt
(V)
Power
(W)
Lumens
/meter
N3528R-24-360 Red 4800*28*2.5 360 24 26.4 680
N3528Y-24-360 Yellow 4800*28*2.5 360 24 26.4 680
N3528B-24-360 Blue 4800*28*2.5 360 24 26.4 1250
N3528G-24-360 Green 4800*28*2.5 360 24 26.4 1500
N3528W-24-360 White 4800*28*2.5 360 24 26.4 2340
N3528WW-24-360 Warm white 4800*28*2.5 360 24 26.4 2160

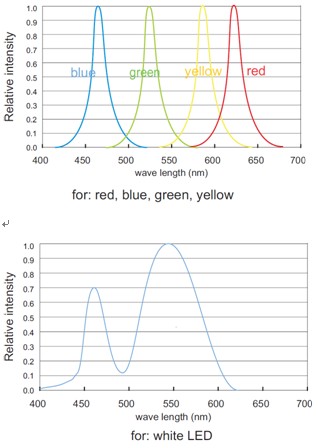

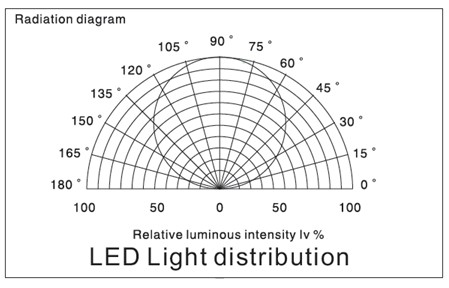

Light distribution:

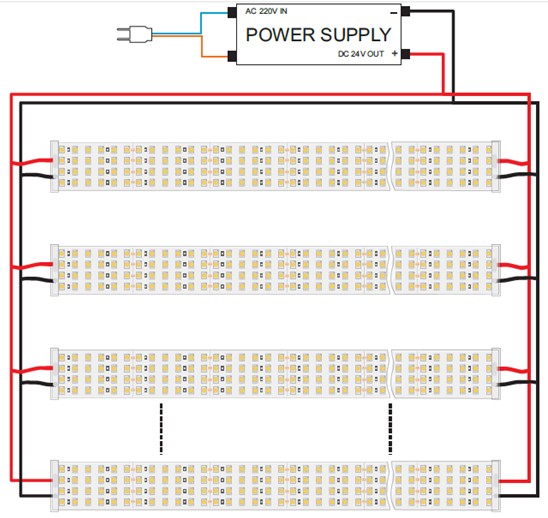

How to install single color LED strip lights with power supply:

Package:

4.8 meters strip in one reel, one reel in one anti-static bag, 20 bags in one carton.
