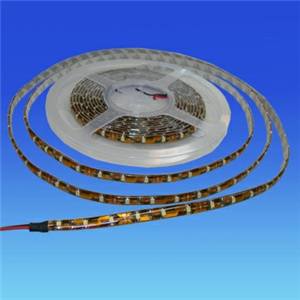

3528 LED Flexible Strips IP65 Waterproof Drop Glue
Short Description
name: 3528 LED Flexible Strips IP65 Waterproof Drop Glue
Model: WSG-3528W-12/24-60/120
Model: WSG-3528W-12/24-60/120
Buy IP65 LED Flexible Strips from China LED Light Manufacturer Haichang Optotech, 3528 SMD LED, waterproof, drop glue, 120 deg angle, 120-1200LM.
Description:
The drop glue waterproof 3528 LED Flexible Strip is designed for outdoor use. It is drop glued on one side of the LED strip while there’s 3M tape on the back side. Made of super bright 3528 SMD LED, it is quite bright, rugged and durable. It works under DC12V or DC24V which is safer than high voltage tubes or strips. It is cuttable every three or six LEDs.
Product features:
3-year warranty
Super bright Epistar SMD 3528 LED as light source, CRI>80
Both White and Brown PCB board available
3M tape on back side
Low power consumption
50,000 hours lifetime
Flexible application: small space required; every three or six LEDs a loop; each loop can be easily cut off from the incising line
Instant start, no flickering, no humming
Low voltage power supply - very safe
Various number of LEDs, sizes and colors available
CE & RoHS compliant
Specifications:
1. Available colors: red/ green /blue /yellow/ pink/ white(4000-7000K) / warm white(2400-3500K)
2. LED Quantity: 30/60/120/180 pcs per meter
3. Working Voltage: DC12 or DC24V
4. Luminous: 120~1200lm
5. Viewing Angle: 120 degree
6. Operating temperature: -20℃~50℃
7. Packing: 5 meter per reel
Technical datas:
60LED/m LED Flexible strips waterproof drop glue:
120LED/m LED Flexible strips waterproof drop glue:
Applications:
Our LED flexible strips are widely used in:
1. Architectural decorative lighting for canopy, corridor, window, archway, bridge edge lighting
2. Back lighting or edge lighting for signage letters and channel letters
3. Cove lighting, concealed lighting
4. Decorative lighting for festivals, events, shows, exhibitions
5. Contour lighting: stairway, aisle
6. DIY lighting for indoor use
Attentions:
Not to be used in sealed or hot places
Product features:
3-year warranty
Super bright Epistar SMD 3528 LED as light source, CRI>80
Both White and Brown PCB board available
3M tape on back side
Low power consumption
50,000 hours lifetime
Flexible application: small space required; every three or six LEDs a loop; each loop can be easily cut off from the incising line
Instant start, no flickering, no humming
Low voltage power supply - very safe
Various number of LEDs, sizes and colors available
CE & RoHS compliant
Specifications:
1. Available colors: red/ green /blue /yellow/ pink/ white(4000-7000K) / warm white(2400-3500K)
2. LED Quantity: 30/60/120/180 pcs per meter
3. Working Voltage: DC12 or DC24V
4. Luminous: 120~1200lm
5. Viewing Angle: 120 degree
6. Operating temperature: -20℃~50℃
7. Packing: 5 meter per reel
Technical datas:
60LED/m LED Flexible strips waterproof drop glue:
| Part Number | Color | Size / reel (mm) |
LED/m | Volt (V) |
Power (W) |
IP degree |
Lumens /meter |
| WSG-3528R-12/24-60 | Red | 5000*8*2.5 | 60 | 12/24 | 4.8 | IP65 | 120 |
| WSG-3528Y-12/24-60 | Yellow | 5000*8*2.5 | 60 | 12/24 | 4.8 | IP65 | 120 |
| WSG-3528B-12/24-60 | Blue | 5000*8*2.5 | 60 | 12/24 | 4.8 | IP65 | 150 |
| WSG-3528G-12/24-60 | Green | 5000*8*2.5 | 60 | 12/24 | 4.8 | IP65 | 240 |
| WSG-3528W-12/24-60 | White | 5000*8*2.5 | 60 | 12/24 | 4.8 | IP65 | 390 |
| WSG-3528WW-12/24-60 | Warm White | 5000*8*2.5 | 60 | 12/24 | 4.8 | IP65 | 360 |
120LED/m LED Flexible strips waterproof drop glue:
| Part Number | Color | Size / reel (mm) |
LED/m | Volt (V) |
Power (W) |
IP degree |
Lumens /meter |
| WSG-3528R-12/24-120 | Red | 5000*8*2.5 | 120 | 12/24 | 9.6 | IP65 | 240 |
| WSG-3528Y-12/24-120 | Yellow | 5000*8*2.5 | 120 | 12/24 | 9.6 | IP65 | 240 |
| WSG-3528B-12/24-120 | Blue | 5000*8*2.5 | 120 | 12/24 | 9.6 | IP65 | 300 |
| WSG-3528G-12/24-120 | Green | 5000*8*2.5 | 120 | 12/24 | 9.6 | IP65 | 480 |
| WSG-3528W-12/24-120 | White | 5000*8*2.5 | 120 | 12/24 | 9.6 | IP65 | 780 |
| WSG-3528WW-12/24-120 | Warm White | 5000*8*2.5 | 120 | 12/24 | 9.6 | IP65 | 720 |
Applications:
Our LED flexible strips are widely used in:
1. Architectural decorative lighting for canopy, corridor, window, archway, bridge edge lighting
2. Back lighting or edge lighting for signage letters and channel letters
3. Cove lighting, concealed lighting
4. Decorative lighting for festivals, events, shows, exhibitions
5. Contour lighting: stairway, aisle
6. DIY lighting for indoor use
Attentions:
Not to be used in sealed or hot places
