T5 Integrated LED Tube

Short Description

name: T5 Integrated LED Tube
Model: T5ITG-120W16-2835

Our T5 Integrated LED Tube uses 2835 SMD LED as light source with various sizes available typically 300mm,600mm,1200mm,1500mm. Multiple tubes can be easily joint seamlessly through the connector. This type of T5 integrated tube adopts AC85-265V wide voltage input. It is CE and RoHS compliant.

Request a Quote

Keyword:led interior lighting, Retrofit LED tube, LED tube light, LED pipe,

Previous: 22W Plug-in LED Tube 2G11Next: LED Panel Lights 600×600 mm

Description:

Features:

Integrated design makes sure that each two tubes can connect seamlessly without shadow
Antioxidant fine copper joint with high quality conductivity and safety
Aluminum alloy body, High-grade PC cover with nice light transmittance
Light source: 2835 SMD LEDs
Color rendering Index (CRI)≥72, CRI>80 available
Inside constant-current led power supply design, Power Factor (PF) >0.90
Ambient temperature:-20℃-40℃, surface temperature: 42℃-45℃
UV free, mercury free, no IR radiation, Eco-friendly
Instant start without Flickering
80% Energy-saving,50,000H lifetime

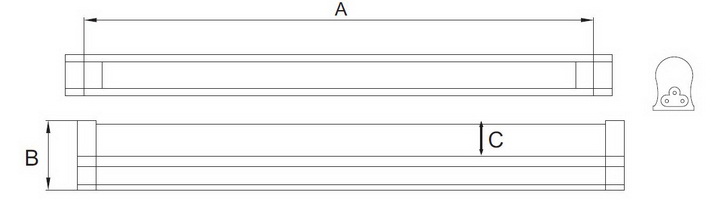

Product Dimension:

Standard Length	Dimension(mm)
Standard Length	A(max)	B(max)	C(max)
300	300	28	14
600	573
900	890
1200	1183

Technical details:

Model	LED quantity	Tube length	Power	Input voltage	Kelvin Tc(K)	Lumens (Lm)

T5ITG-015W2-2835	14 PCS	150mm	2W±1.0W	AC85-265V	2800-3200K	250-300LM
					4000-4500K	300-350LM
					5500-6500K	300-350LM
T5ITG-030W4-2835	28 PCS	300mm	4W±1.0W	AC85-265V	2800-3200K	250-300LM
					4000-4500K	300-350LM
					5500-6500K	300-350LM
T5ITG-050W7-2835	46 PCS	500mm	7W±1.0W	AC85-265V	2800-3200K	400-450LM
					4000-4500K	450-500LM
					5500-6500K	450-500LM
T5ITG-060W8-2835	54 PCS	600mm	8W±1.0W	AC85-265V	2800-3200K	480-540LM
					4000-4500K	550-600LM
					5500-6500K	550-600LM
T5ITG-090W12-2835	84 PCS	900mm	12W±1.0W	AC85-265V	2800-3200K	800-900LM
					4000-4500K	900-1000LM
					5500-6500K	900-1000LM
T5ITG-100W14-2835	92 PCS	1000mm	14W±1.0W	AC85-265V	2800-3200K	1000-1100LM
					4000-4500K	1100-1200LM
					5500-6500K	1100-1200LM
T5ITG-120W16-2835	110 PCS	1200mm	16W±1.0W	AC85-265V	2800-3200K	1200-1300LM
					4000-4500K	1300-1400LM
					5500-6500K	1300-1400LM
T5ITG-150W20-2835	138 PCS	1500mm	20W±1.0W	AC85-265V	2800-3200K	1600-1700LM
					4000-4500K	1700-1800LM
					5500-6500K	1700-1800LM

Applications:
Accent lighting, Task lighting or Display lighting: cabinets, counters, cupboards, etc.
Back lighting for square billboards or advertisement boards.
Residential lighting, supermarket lighting, office lighting, hotel lighting, etc.
