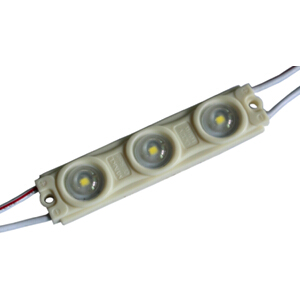

2835 Wide Beam Angle Injection LED Module with Lens
Short Description
name: 2835 Wide Beam Angle Injection LED Module with Lens
Model: 2835-IJ-W2SMD-LN
Model: 2835-IJ-W2SMD-LN
Buy 2835 LED Modules from China LED Light Manufacturer Haichang Optotech, wide beam angle with lens, 0.72W/pc power, IP 67, waterproof, anti-fire.
Description:
Features:
Lens with 160°wide beam angle, more even emitting, 3 years warranty
High quality ABS material, injection molding process
Constant current driver, more reliable
Beautiful appearance, Waterproof, Anti-fire
Super bright 2835 SMD LED
DC 12v low voltage drive, very safe, low power consumption, long life
3M tape on back, reserved mounting hole, easy to install into the light box, maintenance—free
Technical details:
Power: 0.72W/pc
Light source: 2 pc of 2835 SMD LED
Housing: ABS
Lumens: 70 Lm
Beam degree: 160°
Operation Voltage: DC12V
IP Degree: IP 67
Colors available: white, warm white, red, blue, green, yellow
Max connection Quantity: 20pcs
Dimension: 45*15 mm
Normal working temperature : -30℃~50℃
Certificate: CE, ROHS
Power: 1.08W/pc
Light source: 3 pc of 2835 SMD LED
Housing: ABS
Lumens: 100 Lm
Beam degree: 160°
Operation Voltage: DC12V
IP Degree: IP 67
Colors available: white, warm white, red, blue, green, yellow
Max connection Quantity: 20pcs
Dimension: 67*15 mm
Normal working temperature : -30℃~50℃
Certificate: CE, ROHS
Applications:
Our Wide beam angle Injection LED module is widely used in:
1) Backlighting for channel letters and advertisement signage or light box
2) Decorations lights for entertainment places such as disco, KTV, bars and night clubs
3) Decoration for Events and shows
4) Decoration for pool, fountains or waterfall
5) Task lighting or marine signal
Packaging:
1. Outer carton: 52x37x26cm ; Anti-static bag: 305x280x0.12mm .
2. 40pcs per chain, 2 chain in one Anti-static bag . ( 80 pcs in one Anti-static bag)
3. 30 bags in one carton . ( 2400 pcs in one carton)
4. Net weight: 19.5kg Gross weight: 20.3kg/carton
Lens with 160°wide beam angle, more even emitting, 3 years warranty
High quality ABS material, injection molding process
Constant current driver, more reliable
Beautiful appearance, Waterproof, Anti-fire
Super bright 2835 SMD LED
DC 12v low voltage drive, very safe, low power consumption, long life
3M tape on back, reserved mounting hole, easy to install into the light box, maintenance—free
Technical details:
Power: 0.72W/pc
Light source: 2 pc of 2835 SMD LED
Housing: ABS
Lumens: 70 Lm
Beam degree: 160°
Operation Voltage: DC12V
IP Degree: IP 67
Colors available: white, warm white, red, blue, green, yellow
Max connection Quantity: 20pcs
Dimension: 45*15 mm
Normal working temperature : -30℃~50℃
Certificate: CE, ROHS
Power: 1.08W/pc
Light source: 3 pc of 2835 SMD LED
Housing: ABS
Lumens: 100 Lm
Beam degree: 160°
Operation Voltage: DC12V
IP Degree: IP 67
Colors available: white, warm white, red, blue, green, yellow
Max connection Quantity: 20pcs
Dimension: 67*15 mm
Normal working temperature : -30℃~50℃
Certificate: CE, ROHS
Applications:
Our Wide beam angle Injection LED module is widely used in:
1) Backlighting for channel letters and advertisement signage or light box
2) Decorations lights for entertainment places such as disco, KTV, bars and night clubs
3) Decoration for Events and shows
4) Decoration for pool, fountains or waterfall
5) Task lighting or marine signal
Packaging:
1. Outer carton: 52x37x26cm ; Anti-static bag: 305x280x0.12mm .
2. 40pcs per chain, 2 chain in one Anti-static bag . ( 80 pcs in one Anti-static bag)
3. 30 bags in one carton . ( 2400 pcs in one carton)
4. Net weight: 19.5kg Gross weight: 20.3kg/carton
