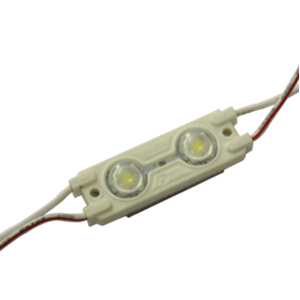

Wide Beam Angle Injection LED Module with Lens

Short Description

name: Wide Beam Angle Injection LED Module with Lens
Model: 5730-IJ-W3SMD-LN

Buy Injection LED Module from China LED Light Manufacturer Haichang Optotech, lens with 160 deg wide beam angle, 2pcs of 5050 SMD LED, 0.48W/pc.

Request a Quote

Keyword:led modules for signage, outdoor led sign, LED Advertising Sign, led light box, signage lighting, 3 led module,

Previous: 3pc 5050 Injection LED ModuleNext: 5050 Waterproof PVC LED Module

Description:

Features:

Lens with 160°wide beam angle, more even emitting, 3 years warranty
Aluminum PCB board, better heat dissipation
High quality ABS material, injection molding process
Constant current driver, more reliable
Beautiful appearance, Waterproof, Anti-fire
Super bright 5050/5730 SMD LED, perfect for illuminating large light box
DC 12v low voltage drive, very safe, low power consumption, long life
3M tape on back, reserved mounting hole, easy to install into the light box, maintenance—free

Technical details:

Power: 0.48W/pc
Light source: 2 pc of 5050 SMD LED
Housing: ABS
Lumens: 40 Lm
Beam degree: 160°
Operation Voltage: DC12V
IP Degree: IP 67
Colors available: white, warm white, red, blue, green, yellow
Max connection Quantity: 50pcs
Dimension: 44*15 mm
Normal working temperature : -30℃~50℃
Certificate: CE, ROHS

Power: 0.72W/pc
Light source: 3 pc of 5050 SMD LED
Housing: ABS
Lumens: 60 Lm
Beam degree: 160°
Operation Voltage: DC12V
IP Degree: IP 67
Colors available: white, warm white, red, blue, green, yellow
Max connection Quantity: 40pcs
Dimension: 63*15 mm
Normal working temperature : -30℃~50℃
Certificate: CE, ROHS

Power: 1.2W/pc
Light source: 3 pc of 5730 SMD LED
Housing: ABS
Lumens: 120 Lm
Beam degree: 160°
Operation Voltage: DC12V
IP Degree: IP 67
Colors available: white, warm white, red, blue, green, yellow
Max connection Quantity: 25pcs
Dimension: 77*15 mm
Normal working temperature : -30℃~50℃
Certificate: CE, ROHS

Applications:
Our Wide beam angle Injection LED module is widely used in:
1) Backlighting for channel letters and advertisement signage or light box
2) Decorations lights for entertainment places such as disco, KTV, bars and night clubs
3) Decoration for Events and shows
4) Decoration for pool, fountains or waterfall
5) Task lighting or marine signal

Packaging:

1. Outer carton: 52x37x26cm ; Anti-static bag: 305x280x0.12mm .
2. 40pcs per chain, 2 chain in one Anti-static bag . ( 80 pcs in one Anti-static bag)
3. 30 bags in one carton . ( 2400 pcs in one carton)
4. Net weight: 19.5kg Gross weight: 20.3kg/carton
