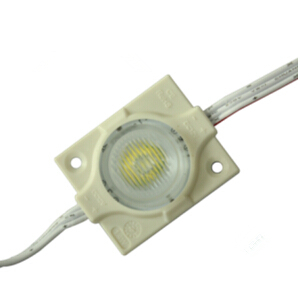

High Power LED Modules for Light Box
Short Description
name: High Power LED Modules for Light Box
Model: 3535-IJ-CW1SMD
Model: 3535-IJ-CW1SMD
Buy High Power LED Modules from China LED Light Manufacturer Haichang Optotech, 1.4W/pc power, ABS housing, 135 Lm lumens, aluminum PCB board.
Description:
Features:
Branded 3535 high power LED chip
Simple, practical and beautiful appearance
High brightness, perfect for illuminating large light box
Constant current driver, more reliable
Aluminum PCB board, better heat dissipation
High quality ABS material, injection molding process
Anti-static, flame retardant, abrasion resistance, chemical resistance
DC12v low working voltage, very safe for human, low power consumption, long life
3M tape on back, reserved mounting hole, easy to install into the light box, maintenance—free
Technical details:
Power: 1.4W/pc
LED: 1 pc of 3535 SMD LED
Housing: ABS
Lumens: 135 Lm
Beam degree: 15*60
Operation Voltage: DC12V
IP Degree: IP 68
Colors available: Cool white, Nature white, Warm white
Max connection Quantity: 30pcs
Dimension: 36*43*15 mm
Normal working temperature : -30℃~50℃
Certificate: CE, ROHS
Power: 2.8W/pc
LED: 1 pc of 3535 SMD LED
Housing: ABS
Lumens: 210 Lm
Beam degree: 15*60
Operation Voltage: DC12V
IP Degree: IP 68
Colors available: Cool white, Nature white, Warm white
Max connection Qty: 18pcs
Dimension: 36*43*15 mm
Normal working temperature : -30℃~50℃
Certificate: CE, ROHS
Applications:
Illuminating large indoor and outdoor light box, double sided light boxes, such as the light boxes in bus station, subway, airports, etc..
Packaging:
1. Outer carton: 52x237x26cm ; Aluminum-Foil bag: 305x280x0.12mm
2.18pcs pure chain,5 chain in one aluminum -foil bag. (90 pcs in one aluminum foil)
3. 20 bags (1800pcs) in one carton .
4. N.W: 19Kg
5. G.W: 20.3Kg
Branded 3535 high power LED chip
Simple, practical and beautiful appearance
High brightness, perfect for illuminating large light box
Constant current driver, more reliable
Aluminum PCB board, better heat dissipation
High quality ABS material, injection molding process
Anti-static, flame retardant, abrasion resistance, chemical resistance
DC12v low working voltage, very safe for human, low power consumption, long life
3M tape on back, reserved mounting hole, easy to install into the light box, maintenance—free
Technical details:
Power: 1.4W/pc
LED: 1 pc of 3535 SMD LED
Housing: ABS
Lumens: 135 Lm
Beam degree: 15*60
Operation Voltage: DC12V
IP Degree: IP 68
Colors available: Cool white, Nature white, Warm white
Max connection Quantity: 30pcs
Dimension: 36*43*15 mm
Normal working temperature : -30℃~50℃
Certificate: CE, ROHS
Power: 2.8W/pc
LED: 1 pc of 3535 SMD LED
Housing: ABS
Lumens: 210 Lm
Beam degree: 15*60
Operation Voltage: DC12V
IP Degree: IP 68
Colors available: Cool white, Nature white, Warm white
Max connection Qty: 18pcs
Dimension: 36*43*15 mm
Normal working temperature : -30℃~50℃
Certificate: CE, ROHS
Applications:
Illuminating large indoor and outdoor light box, double sided light boxes, such as the light boxes in bus station, subway, airports, etc..
Packaging:
1. Outer carton: 52x237x26cm ; Aluminum-Foil bag: 305x280x0.12mm
2.18pcs pure chain,5 chain in one aluminum -foil bag. (90 pcs in one aluminum foil)
3. 20 bags (1800pcs) in one carton .
4. N.W: 19Kg
5. G.W: 20.3Kg
