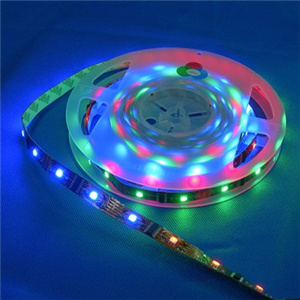

Scan LED Strips 5V

Short Description

name: Scan LED Strips 5V
Model: W5050-RGB-32

The scan LED Strips are designed for getting beautiful RGB color changing effect, by using 32pcs of 5050 SMD LEDs every meter. It can generate various effect such as scan or flow.

Description:

We are China manufacturer of LED flexible strips DC5V with scan or flow effect.

The scan LED Strips are designed for getting beautiful RGB color changing effect, by using 32pcs of 5050 SMD LEDs every meter. Each 2 pieces of 3-in-1 5050 SMD LEDs (RGB) are controller by one IC ,IC receives the controlling signal from controller to change the color and brightness, it can generate various effect such as scan or flow.

Available with various colors: red, green, blue, yellow, white, warm white.
The working Voltage is DC5V.
Operating temperature is -20℃~50℃.

Product features:

Use 32pcs super bright SMD 5050 LED as light source
Very bright and low power consumption
Very long life span – normally over 50,000 hours
Flexible application: small space required; every three or six LEDs a loop; each loop can be easily cut off from the incising line
Instant start, no flickering, no humming
Low power supply - very safe.
Various sizes and colors available
CE & RoHS Compliant

Applications:

Our waterproof LED flexible strips DC5V with flow/scan effect are widely used in:

1. Architectural decorative lighting for canopy, corridor, window, archway, bridge edge lighting
2. Back lighting or edge lighting for signage letters and channel letters
3. Cove lighting, concealed lighting
4. Decorative lighting for festivals, events, shows, exhibitions
5. Contour lighting: stairway, aisle…
6. DIY lighting for indoor use

Specifications:

1. Waterproof IP67 or Non-waterproof
2. Available colors: red/ green /blue /yellow/ white/ warm white
3. LED Quantity: 32pcs per meter
4. Working Voltage: DC5V
5. Luminous: up to 384lm
6. Viewing Angle: 120°
7. Operating temperature: -20℃~50℃
8. Packing: 5 meter per reel

Technical datas:


Part Number Color Size / reel
(mm)
LED qty
per meter
Volt
(V)
Power
(W)
IP
degree
Lumens
/meter

W5050-RGB-32
Red
5000*14*4

32

5

9.6

IP67
192
Green 384
Blue 240


Attentions:

Not to be used in sealed or hot places
