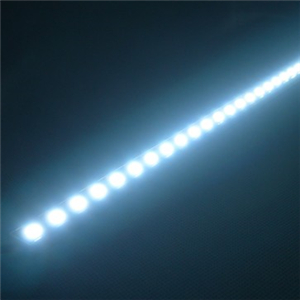

Indoor 5050 LED Rigid Strips
Short Description
name: Indoor 5050 LED Rigid Strips
Model: N5050W-12-30/48/60/72
Model: N5050W-12-30/48/60/72
5050 Aluminum LED rigid strips (Aluminum LED bars) Non-waterproof for indoor use. Available with RGB LED rigid strips, Cool White / Warm white LED rigid strips, Red/Green/Blue/Yellow LED rigid strips.
Description:
Indoor 5050 LED rigid strips
5050 Aluminum LED rigid strips (Aluminum LED bars) Non-waterproof for indoor use
Available with RGB LED rigid strips, Cool White / Warm white LED rigid strips, Red/Green/Blue/Yellow LED rigid strips.
Product Features:
Aluminum housing - Excellent heat dissipation
Low voltage, very safe
Quick installation; Easy to be extended to any length via connection cables
Solid-state, high shock or vibration resistant
Technical details:
Applications:
Our Indoor 5050 LED rigid strips are perfectly suitable for:
1) Cove lighting.
2) Backlight or edge light for letters & signage.
3) Architectural lighting for canopy, corridor, window.
4) DIY lights for home use.
5) Decorative lights for holiday, event, show, exhibition.
6) Decorative lights for automobile.
7) Incandescent or fluorescent tube replacement.
5050 Aluminum LED rigid strips (Aluminum LED bars) Non-waterproof for indoor use
Available with RGB LED rigid strips, Cool White / Warm white LED rigid strips, Red/Green/Blue/Yellow LED rigid strips.
Product Features:
Aluminum housing - Excellent heat dissipation
Low voltage, very safe
Quick installation; Easy to be extended to any length via connection cables
Solid-state, high shock or vibration resistant
Technical details:
| Part number | Color | Dimension (mm) |
LED QTY /meter |
Voltage (V) |
Power(W) /meter |
IP Degree |
Lumen /meter |
| N5050R-12-30 | Red | 1000*15*7 | 30 | 12 | 7.2 watt | IP20 | 60 |
| Green | 120 | ||||||
| Blue | 75 | ||||||
| N5050R-12-30 | Red | 1000*15*7 | 30 | 12 | 7.2 watt | IP20 | 180 |
| N5050Y-12-30 | Yellow | 1000*15*7 | 30 | 12 | 7.2 watt | IP20 | 180 |
| N5050B-12-30 | Blue | 1000*15*7 | 30 | 12 | 7.2 watt | IP20 | 225 |
| N5050G-12-30 | Green | 1000*15*7 | 30 | 12 | 7.2 watt | IP20 | 360 |
| N5050W-12-30 | White | 1000*15*7 | 30 | 12 | 7.2 watt | IP20 | 585 |
| N5050WW-12-30 | Warm White | 1000*15*7 | 30 | 12 | 7.2 watt | IP20 | 540 |
| Part number | Color | Dimension (mm) |
LED QTY /meter |
Voltage (V) |
Power(W) /meter |
IP Degree |
Lumen /meter |
| N5050R-12-48 | Red | 1000*15*7 | 48 | 12 | 11.4 watt | IP20 | 96 |
| Green | 192 | ||||||
| Blue | 120 | ||||||
| N5050R-12-48 | Red | 1000*15*7 | 48 | 12 | 11.4 watt | IP20 | 288 |
| N5050Y-12-48 | Yellow | 1000*15*7 | 48 | 12 | 11.4 watt | IP20 | 288 |
| N5050B-12-48 | Blue | 1000*15*7 | 48 | 12 | 11.4 watt | IP20 | 360 |
| N5050G-12-48 | Green | 1000*15*7 | 48 | 12 | 11.4 watt | IP20 | 576 |
| N5050W-12-48 | White | 1000*15*7 | 48 | 12 | 11.4 watt | IP20 | 936 |
| N5050WW-12-48 | Warm White | 1000*15*7 | 48 | 12 | 11.4 watt | IP20 | 864 |
| Part number | Color | Dimension (mm) |
LED QTY /meter |
Voltage (V) |
Power(W) /meter |
IP Degree |
Lumen /meter |
| N5050R-12-60 | Red | 1000*15*7 | 60 | 12 | 14.4 watt | IP20 | 120 |
| Green | 240 | ||||||
| Blue | 150 | ||||||
| N5050R-12-60 | Red | 1000*15*7 | 60 | 12 | 14.4 watt | IP20 | 360 |
| N5050Y-12-60 | Yellow | 1000*15*7 | 60 | 12 | 14.4 watt | IP20 | 360 |
| N5050B-12-60 | Blue | 1000*15*7 | 60 | 12 | 14.4 watt | IP20 | 450 |
| N5050G-12-60 | Green | 1000*15*7 | 60 | 12 | 14.4 watt | IP20 | 720 |
| N5050W-12-60 | White | 1000*15*7 | 60 | 12 | 14.4 watt | IP20 | 1170 |
| N5050WW-12-60 | Warm White | 1000*15*7 | 60 | 12 | 14.4 watt | IP20 | 1080 |
| Part number | Color | Dimension (mm) |
LED QTY /meter |
Voltage (V) |
Power(W) /meter |
IP Degree |
Lumen /meter |
| N5050R-12-72 | Red | 1000*15*7 | 72 | 12 | 17.4 watt | IP20 | 144 |
| Green | 288 | ||||||
| Blue | 180 | ||||||
| N5050R-12-72 | Red | 1000*15*7 | 72 | 12 | 17.4 watt | IP20 | 432 |
| N5050Y-12-72 | Yellow | 1000*15*7 | 72 | 12 | 17.4 watt | IP20 | 432 |
| N5050B-12-72 | Blue | 1000*15*7 | 72 | 12 | 17.4 watt | IP20 | 540 |
| N5050G-12-72 | Green | 1000*15*7 | 72 | 12 | 17.4 watt | IP20 | 864 |
| N5050W-12-72 | White | 1000*15*7 | 72 | 12 | 17.4 watt | IP20 | 1404 |
| N5050WW-12-72 | Warm White | 1000*15*7 | 72 | 12 | 17.4 watt | IP20 | 1296 |
Applications:
Our Indoor 5050 LED rigid strips are perfectly suitable for:
1) Cove lighting.
2) Backlight or edge light for letters & signage.
3) Architectural lighting for canopy, corridor, window.
4) DIY lights for home use.
5) Decorative lights for holiday, event, show, exhibition.
6) Decorative lights for automobile.
7) Incandescent or fluorescent tube replacement.
