Side Emitting LED Flexible Strips

Short Description

name: Side Emitting LED Flexible Strips
Model: N/WST335W-12-60

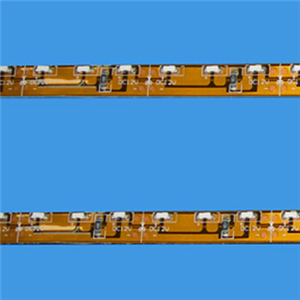

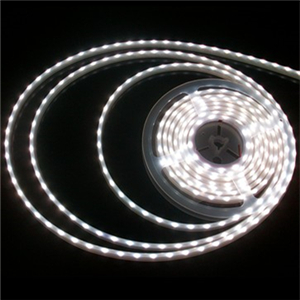

The Side Emitting LED Strips are made of 60pcs of 96pcs of 335 SMD LEDs. The light is emitted from one side of the LEDs. Available with both waterproof and non-waterproof versions for either indoor or outdoor use.

Description:

Product features:

Super bright SMD 335 LED as light source
Very bright and low power consumption
Very long lifespan: over 50,000 hours
Flexible application: small space required; every three or six LEDs a cut
Instant start, no flickering, no humming
Low power supply - very safe.
Various type of LEDs, sizes and colors available
CE & RoHS compliant

Applications:
1. Architectural decorative lighting for canopy, corridor, window, archway, bridge edge lighting
2. Back lighting or edge lighting for signage letters and channel letters
3. Cove lighting, concealed lighting
4. Decorative lighting for festivals, events, shows, exhibitions
5. Contour lighting: stairway, aisle

Specifications:
1. Waterproof or Non-waterproof
2. Available colors: red/ green /blue /yellow/ white/ warm white
3. LED Quantity: 60/96pcs per meter
4. Working Voltage: DC12V
5. Luminous: up to 390lm
6. Viewing Angle: 120 degree
7. Operating temperature: -20℃~50℃
8. Packing: 5 meter per reel

Technical datas:


Part Number Color Size/reel
(mm)
LED/m Volt
(V)
Power
(W)
IP
degree
Lumens
/meter
N/WST335R-12-60 Red 5000*5*1 60 12 4.8 IP20/IP67 120
N/WST335Y-12-60 Yellow 5000*5*1 60 12 4.8 IP20/IP67 120
N/WST335B-12-60 Blue 5000*5*1 60 12 4.8 IP20/IP67 150
N/WST335G-12-60 Green 5000*5*1 60 12 4.8 IP20/IP67 240
N/WST335W-12-60 White 5000*5*1 60 12 4.8 IP20/IP67 390
N/WST335WW-12-60 Warm White 5000*5*1 60 12 4.8 IP20/IP67 360

Part Number Color Size/reel
(mm)
LED/m Volt
(V)
Power
(W)
IP
degree
Lumens
/meter
N/WST335R-12-96 Red 5000*5*1 96 12 7.7 IP20/IP67 192
N/WST335Y-12-96 Yellow 5000*5*1 96 12 7.7 IP20/IP67 192
N/WST335B-12-96 Blue 5000*5*1 96 12 7.7 IP20/IP67 240
N/WST335G-12-96 Green 5000*5*1 96 12 7.7 IP20/IP67 384
N/WST335W-12-96 White 5000*5*1 96 12 7.7 IP20/IP67 624
N/WST335WW-12-96 Warm White 5000*5*1 96 12 7.7 IP20/IP67 576

Attentions:

Not to be used in sealed or hot places
