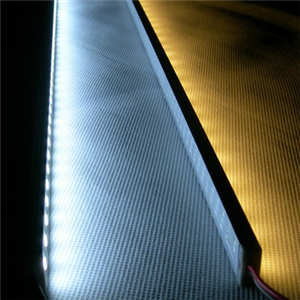

Outdoor 5050 Waterproof LED Rigid Strips
Short Description
name: Outdoor 5050 Waterproof LED Rigid Strips
Model: W5050W-12-30/48/60/72
Model: W5050W-12-30/48/60/72
Available with 5050 30LED/meter, 48LED/meter, 60LED/meter, 72LED/meter Available with RGB LED rigid strips, Cool White / Warm white LED rigid strips, Red/Green/Blue/Yellow LED rigid strips.
Keyword:LED strip 5050, waterproof LED strip lights, LED bar, rigid LED strip, RGB LED light strips,
Previous: Indoor 5050 LED Rigid StripsNext: Aluminum Top LED Bars
Description:
Product Features:
IP65 or IP67 Waterproof, suitable for outdoor applications
Aluminum housing - Excellent heat dissipation
Quick installation; Easy to be extended to any length via connection cables
Solid-state, high shock or vibration resistant
Technical details:
Applications:
Outdoor 5050 Waterproof LED rigid strips are widely used in:
1) Cove lighting.
2) Backlight or edge light for letters & signage.
3) Architectural lighting for canopy, corridor, window.
4) DIY lights for home use.
5) Decorative lights for holiday, event, show, exhibition.
6) Decorative lights for automobile.
7) Incandescent or fluorescent tube replacement
IP65 or IP67 Waterproof, suitable for outdoor applications
Aluminum housing - Excellent heat dissipation
Quick installation; Easy to be extended to any length via connection cables
Solid-state, high shock or vibration resistant
Technical details:
| Part number | Color | Dimension (mm) |
LED QTY /meter |
Voltage (V) |
Power(W) /meter |
Protection | Lumen /meter |
| W5050R-12-30 | Red | 1000*15*7 | 30 | 12 | 7.2 watt | IP65/IP67 | 60 |
| Green | 120 | ||||||
| Blue | 75 | ||||||
| W5050R-12-30 | Red | 1000*15*7 | 30 | 12 | 7.2 watt | IP65/IP67 | 180 |
| W5050Y-12-30 | Yellow | 1000*15*7 | 30 | 12 | 7.2 watt | IP65/IP67 | 180 |
| W5050B-12-30 | Blue | 1000*15*7 | 30 | 12 | 7.2 watt | IP65/IP67 | 225 |
| W5050G-12-30 | Green | 1000*15*7 | 30 | 12 | 7.2 watt | IP65/IP67 | 360 |
| W5050W-12-30 | White | 1000*15*7 | 30 | 12 | 7.2 watt | IP65/IP67 | 585 |
| W5050WW-12-30 | Warm White | 1000*15*7 | 30 | 12 | 7.2 watt | IP65/IP67 | 540 |
| Part number | Color | Dimension (mm) |
LED QTY /meter |
Voltage (V) |
Power(W) /meter |
Protection | Lumen /meter |
| W5050R-12-48 | Red | 1000*15*7 | 48 | 12 | 11.4 watt | IP65/IP67 | 96 |
| Green | 192 | ||||||
| Blue | 120 | ||||||
| W5050R-12-48 | Red | 1000*15*7 | 48 | 12 | 11.4 watt | IP65/IP67 | 288 |
| W5050Y-12-48 | Yellow | 1000*15*7 | 48 | 12 | 11.4 watt | IP65/IP67 | 288 |
| W5050B-12-48 | Blue | 1000*15*7 | 48 | 12 | 11.4 watt | IP65/IP67 | 360 |
| W5050G-12-48 | Green | 1000*15*7 | 48 | 12 | 11.4 watt | IP65/IP67 | 576 |
| W5050W-12-48 | White | 1000*15*7 | 48 | 12 | 11.4 watt | IP65/IP67 | 936 |
| W5050WW-12-48 | Warm White | 1000*15*7 | 48 | 12 | 11.4 watt | IP65/IP67 | 864 |
| Part number | Color | Dimension (mm) |
LED QTY /meter |
Voltage (V) |
Power(W) /meter |
Protection | Lumen /meter |
| W5050R-12-60 | Red | 1000*15*7 | 60 | 12 | 14.4 watt | IP65/IP67 | 120 |
| Green | 240 | ||||||
| Blue | 150 | ||||||
| W5050R-12-60 | Red | 1000*15*7 | 60 | 12 | 14.4 watt | IP65/IP67 | 360 |
| W5050Y-12-60 | Yellow | 1000*15*7 | 60 | 12 | 14.4 watt | IP65/IP67 | 360 |
| W5050B-12-60 | Blue | 1000*15*7 | 60 | 12 | 14.4 watt | IP65/IP67 | 450 |
| W5050G-12-60 | Green | 1000*15*7 | 60 | 12 | 14.4 watt | IP65/IP67 | 720 |
| W5050W-12-60 | White | 1000*15*7 | 60 | 12 | 14.4 watt | IP65/IP67 | 1170 |
| W5050WW-12-60 | Warm White | 1000*15*7 | 60 | 12 | 14.4 watt | IP65/IP67 | 1080 |
| Part number | Color | Dimension (mm) |
LED QTY /meter |
Voltage (V) |
Power(W) /meter |
Protection | Lumen /meter |
| W5050R-12-72 | Red | 1000*15*7 | 72 | 12 | 17.4 watt | IP65/IP67 | 144 |
| Green | 288 | ||||||
| Blue | 180 | ||||||
| W5050R-12-72 | Red | 1000*15*7 | 72 | 12 | 17.4 watt | IP65/IP67 | 432 |
| W5050Y-12-72 | Yellow | 1000*15*7 | 72 | 12 | 17.4 watt | IP65/IP67 | 432 |
| W5050B-12-72 | Blue | 1000*15*7 | 72 | 12 | 17.4 watt | IP65/IP67 | 540 |
| W5050G-12-72 | Green | 1000*15*7 | 72 | 12 | 17.4 watt | IP65/IP67 | 864 |
| W5050W-12-72 | White | 1000*15*7 | 72 | 12 | 17.4 watt | IP65/IP67 | 1404 |
| W5050WW-12-72 | Warm White | 1000*15*7 | 72 | 12 | 17.4 watt | IP65/IP67 | 1296 |
Applications:
Outdoor 5050 Waterproof LED rigid strips are widely used in:
1) Cove lighting.
2) Backlight or edge light for letters & signage.
3) Architectural lighting for canopy, corridor, window.
4) DIY lights for home use.
5) Decorative lights for holiday, event, show, exhibition.
6) Decorative lights for automobile.
7) Incandescent or fluorescent tube replacement
