High Lumen 5050 LED Strip 2 Rows

prev
  • High Lumen 5050 LED Strip 2 Rows
  • High Lumen 5050 LED Strip 2 Rows
  • High Lumen 5050 LED Strip 2 Rows
next

Short Description

name: High Lumen 5050 LED Strip 2 Rows
Model: WXX5050X-24-120

Buy High Lumen LED Strips from China LED Light Manufacturer Haichang Optotech, 5050 LEDs, IP20 IP65 IP67 IP68 available, 120 deg angle, DC24V voltage.

Request a Quote
Keyword:LED strip 5050, LED flexible strip light, waterproof LED strip lights, LED tape light, RGB LED light strips,
Previous: High Lumen 3528 LED StripsNext: 2835 LED Flexible Strips

Description:

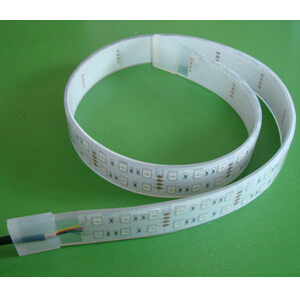

High Lumen 5050 LED Strip

We supply high lumen ultra bright LED strip flexible with 5050 LEDs (120 LEDs per meter). Waterproof or Non-waterproof available. It can be widely used in LED under cabinet lighting, cove lighting, back lighting and residential lighting.

Product features:

3-year warranty
Super bright Epistar SMD 5050 LED as light source, CRI>80
Both White and Brown PCB board available
3M tape on back side
Low power consumption
Cuttable, flexible application: each 6 LEDs a cut
Instant start, no flickering, no humming
50,000 hours lifetime
CE & RoHS compliant

Specifications:
1. Available colors: red/ green /blue /yellow/ white/ warm white/RGB
2. LED Quantity: 120 pcs per meter
3. Working Voltage: DC24V
4. Luminous: up to 2700lm
5. Viewing Angle: 120 degree
6. Operating temperature: -20℃~50℃
7. Packing: 3 meters per reel

Technical datas:

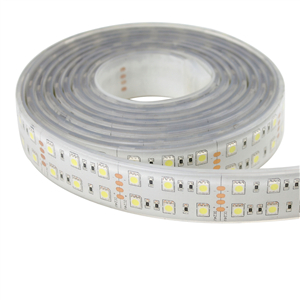

IP68 High Lumen 5050 LED Strip:
Double side glued with epoxy and then overall covered by U-shape Silicone tube. 3M tape on the back.

Part Number Color Size/reel
(mm)		 LED qtyper
meter		 Volt
(V)		 Power
(W)		 Lumens
/meter
WDG5050RGB-24-120 RGB 3000*28*2.2 120 24 26.4 480
WDG5050R-24-120 Red 3000*28*2.2 120 24 26.4 720
WDG5050Y-24-120 Yellow 3000*28*2.2 120 24 26.4 720
WDG5050B-24-120 Blue 3000*28*2.2 120 24 26.4 1100
WDG5050G-24-120 Green 3000*28*2.2 120 24 26.4 1500
WDG5050W-24-120 White 3000*28*2.2 120 24 26.4 2700
WDG5050WW-24-120 Warm white 3000*28*2.2 120 24 26.4 2520

IP67 Silicone tube Waterproof High Lumen 5050 LED Strip:
Covered by U-shape Silicone tube, 3M tape on the back, IP67

Part Number Color Size/reel
(mm)		 LED qtyper
meter		 Volt
(V)		 Power
(W)		 Lumens
/meter
WST5050RGB-24-120 RGB 3000*28*2.2 120 24 26.4 480
WST5050R-24-120 Red 3000*28*2.2 120 24 26.4 720
WST5050Y-24-120 Yellow 3000*28*2.2 120 24 26.4 720
WST5050B-24-120 Blue 3000*28*2.2 120 24 26.4 1100
WST5050G-24-120 Green 3000*28*2.2 120 24 26.4 1500
WST5050W-24-120 White 3000*28*2.2 120 24 26.4 2700
WST5050WW-24-120 Warm white 3000*28*2.2 120 24 26.4 2520

IP65 Drop glue Waterproof High Lumen 5050 LED Strip:
Single side glued LED strip, 3M tape on the back, IP65

Part Number Color Size/reel
(mm)		 LED qtyper
meter		 Volt
(V)		 Power
(W)		 Lumens
/meter
WSG5050RGB-24-120 RGB 3000*28*2.2 120 24 26.4 480
WSG5050R-24-120 Red 3000*28*2.2 120 24 26.4 720
WSG5050Y-24-120 Yellow 3000*28*2.2 120 24 26.4 720
WSG5050B-24-120 Blue 3000*28*2.2 120 24 26.4 1100
WSG5050G-24-120 Green 3000*28*2.2 120 24 26.4 1500
WSG5050W-24-120 White 3000*28*2.2 120 24 26.4 2700
WSG5050WW-24-120 Warm white 3000*28*2.2 120 24 26.4 2520

Non-waterproof High Lumen LED Strip 5050 SMD, IP20:

Part Number Color Size/reel
(mm)		 LED qtyper
meter		 Volt
(V)		 Power
(W)		 Lumens
/meter
N5050RGB-24-120 RGB 3000*28*2.2 120 24 26.4 480
N5050R-24-120 Red 3000*28*2.2 120 24 26.4 720
N5050Y-24-120 Yellow 3000*28*2.2 120 24 26.4 720
N5050B-24-120 Blue 3000*28*2.2 120 24 26.4 1100
N5050G-24-120 Green 3000*28*2.2 120 24 26.4 1500
N5050W-24-120 White 3000*28*2.2 120 24 26.4 2700
N5050WW-24-120 Warm white 3000*28*2.2 120 24 26.4 2520

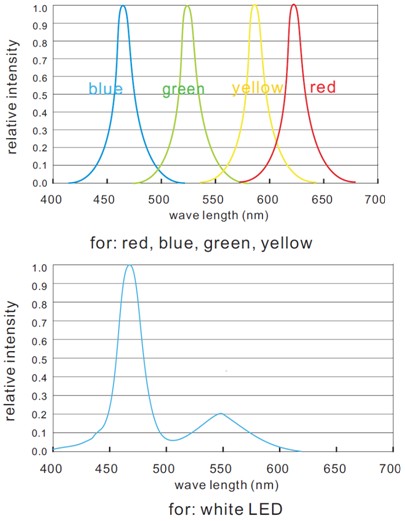

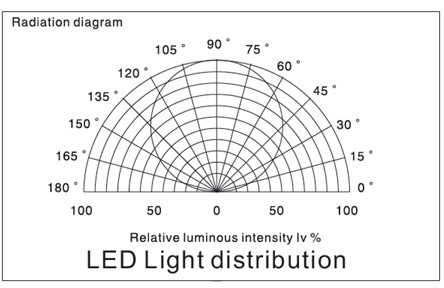

Light distribution:

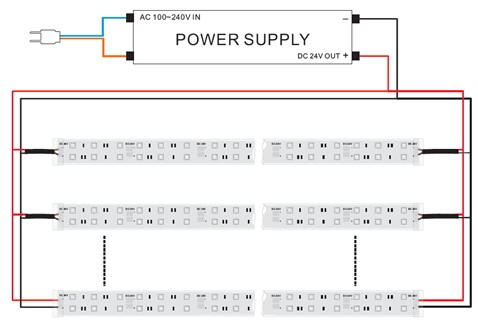

How to install single color LED strip lights with power supply:

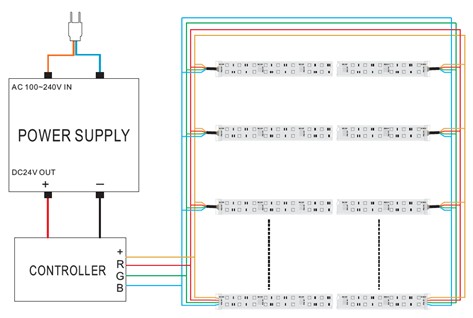

How to install RGB LED strip lights with power supply:

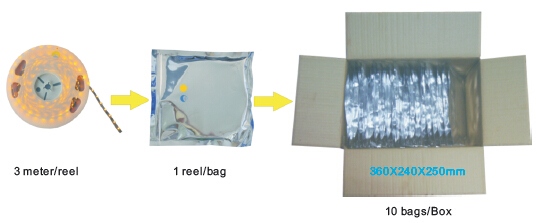

Package:
3 meters strip in one reel, one reel in one anti-static bag, 20 bags in one carton.



Applications:
Our high lumen LED strip 5050 120LEDs can be used in:
1. Architectural decorative lighting for canopy, corridor, window, archway, bridge edge lighting
2. Back lighting or edge lighting for signage letters and channel letters
3. Cove lighting, concealed lighting
4. Decorative lighting for festivals, events, shows, exhibitions
5. Contour lighting: stairway, aisle
6. DIY lighting for indoor use

Attentions:
Not to be used in sealed or hot places
