5050 LED Flexible Strips IP68 Waterproof
Short Description
name: 5050 LED Flexible Strips IP68 Waterproof
Model: WDG-5050W-12/24-60
Model: WDG-5050W-12/24-60
Buy Waterproof LED Flexible Strips Manufacturer Haichang Optotech, 5050 SMD LED, IP68, DC12V or DC24V, white & brown PCB board available.
Description:

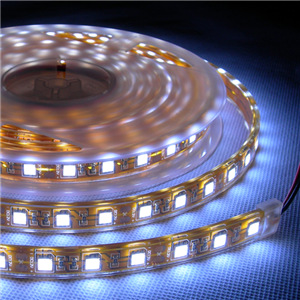

5050 RGB & White LED flexible strips waterproof IP68
We launched the IP68 waterproof LED Flexible Strip for outdoor decoration since the year 2009, one year after we started our LED business. It is irrigation glued with epoxy on double sides and then overall covered by silicone tube. There’s 3M tape on the back side. The protection degree is IP68 which means it is able to work normally while immersed completely in water. Made of super bright 5050 SMD LED, it is quite bright, rugged and durable. It works under DC12V or DC24V which is safer than high voltage tubes or strips. It is cuttable every three or six LEDs.
The 5050 SMD LED strips are available with White LED, RGB LED and other colors. The color of RGB LED Strips is changeable through RGB controller.
Product features:
3-year warranty
Super bright Epistar SMD 5050 LED as light source, CRI>80
Both White and Brown PCB board available
3M tape on back side
Low power consumption
50,000 hours lifetime
Flexible application: small space required; every three or six LEDs a loop; each loop can be easily cut off from the incising line
Instant start, no flickering, no humming
Low voltage power supply - very safe
Various number of LEDs, sizes and colors available
CE & RoHS compliant
Specifications:
1. Available colors: red/ green /blue /yellow/ pink/ white(4000-7000K) / warm white(2400-3500K)
2. LED Quantity: 30 or 60pcs per meter
3. Working Voltage: DC12 or DC24V
4. Luminous flux: up to 1170lm per meter
5. Viewing Angle: 120 degree
6. Operating temperature: -20℃~50℃
7. Packing: 5 meter per reel
Technical datas:
5050 30LED/m LED Flexible strips waterproof IP68:
5050 60LED/m LED Flexible strips waterproof IP68:
Applications:
Our LED flexible strips are widely used in:
1. Architectural decorative lighting for canopy, corridor, window, archway, bridge edge lighting
2. Back lighting or edge lighting for signage letters and channel letters
3. Cove lighting, concealed lighting
4. Decorative lighting for festivals, events, shows, exhibitions
5. Contour lighting: stairway, aisle
6. DIY lighting for indoor use
Attentions:
Not to be used in sealed or hot places
We launched the IP68 waterproof LED Flexible Strip for outdoor decoration since the year 2009, one year after we started our LED business. It is irrigation glued with epoxy on double sides and then overall covered by silicone tube. There’s 3M tape on the back side. The protection degree is IP68 which means it is able to work normally while immersed completely in water. Made of super bright 5050 SMD LED, it is quite bright, rugged and durable. It works under DC12V or DC24V which is safer than high voltage tubes or strips. It is cuttable every three or six LEDs.
The 5050 SMD LED strips are available with White LED, RGB LED and other colors. The color of RGB LED Strips is changeable through RGB controller.
Product features:
3-year warranty
Super bright Epistar SMD 5050 LED as light source, CRI>80
Both White and Brown PCB board available
3M tape on back side
Low power consumption
50,000 hours lifetime
Flexible application: small space required; every three or six LEDs a loop; each loop can be easily cut off from the incising line
Instant start, no flickering, no humming
Low voltage power supply - very safe
Various number of LEDs, sizes and colors available
CE & RoHS compliant
Specifications:
1. Available colors: red/ green /blue /yellow/ pink/ white(4000-7000K) / warm white(2400-3500K)
2. LED Quantity: 30 or 60pcs per meter
3. Working Voltage: DC12 or DC24V
4. Luminous flux: up to 1170lm per meter
5. Viewing Angle: 120 degree
6. Operating temperature: -20℃~50℃
7. Packing: 5 meter per reel
Technical datas:
5050 30LED/m LED Flexible strips waterproof IP68:
| Part Number | Color | Size / reel (mm) |
LED QTY per meter |
Volt (V) |
Power (W) |
IP degree |
Lumens /meter |
| WDG-5050RGB-12/24-30 | RGB | 5000*10*2.5 | 30 | 12/24 | 7.2 | IP68 | 120 |
| WDG-5050R-12/24-30 | Red | 5000*10*2.5 | 30 | 12/24 | 7.2 | IP68 | 180 |
| WDG-5050Y-12/24-30 | Yellow | 5000*10*2.5 | 30 | 12/24 | 7.2 | IP68 | 180 |
| WDG-5050B-12/24-30 | Blue | 5000*10*2.5 | 30 | 12/24 | 7.2 | IP68 | 225 |
| WDG-5050G-12/24-30 | Green | 5000*10*2.5 | 30 | 12/24 | 7.2 | IP68 | 360 |
| WDG-5050W-12/24-30 | White | 5000*10*2.5 | 30 | 12/24 | 7.2 | IP68 | 590 |
| WDG-5050WW-12/24-30 | Warm White | 5000*10*2.5 | 30 | 12/24 | 7.2 | IP68 | 540 |
5050 60LED/m LED Flexible strips waterproof IP68:
| Part Number | Color | Size / reel (mm) |
LED QTY per meter |
Volt (V) |
Power (W) |
IP degree |
Lumens /meter |
| WDG-5050RGB-12/24-60 | RGB | 5000*10*2.5 | 60 | 12/24 | 14.4 | IP68 | 240 |
| WDG-5050R-12/24-60 | Red | 5000*10*2.5 | 60 | 12/24 | 14.4 | IP68 | 360 |
| WDG-5050Y-12/24-60 | Yellow | 5000*10*2.5 | 60 | 12/24 | 14.4 | IP68 | 360 |
| WDG-5050B-12/24-60 | Blue | 5000*10*2.5 | 60 | 12/24 | 14.4 | IP68 | 450 |
| WDG-5050G-12/24-60 | Green | 5000*10*2.5 | 60 | 12/24 | 14.4 | IP68 | 720 |
| WDG-5050W-12/24-60 | White | 5000*10*2.5 | 60 | 12/24 | 14.4 | IP68 | 1170 |
| WDG-5050WW-12/24-60 | Warm White | 5000*10*2.5 | 60 | 12/24 | 14.4 | IP68 | 1080 |
Applications:
Our LED flexible strips are widely used in:
1. Architectural decorative lighting for canopy, corridor, window, archway, bridge edge lighting
2. Back lighting or edge lighting for signage letters and channel letters
3. Cove lighting, concealed lighting
4. Decorative lighting for festivals, events, shows, exhibitions
5. Contour lighting: stairway, aisle
6. DIY lighting for indoor use
Attentions:
Not to be used in sealed or hot places
